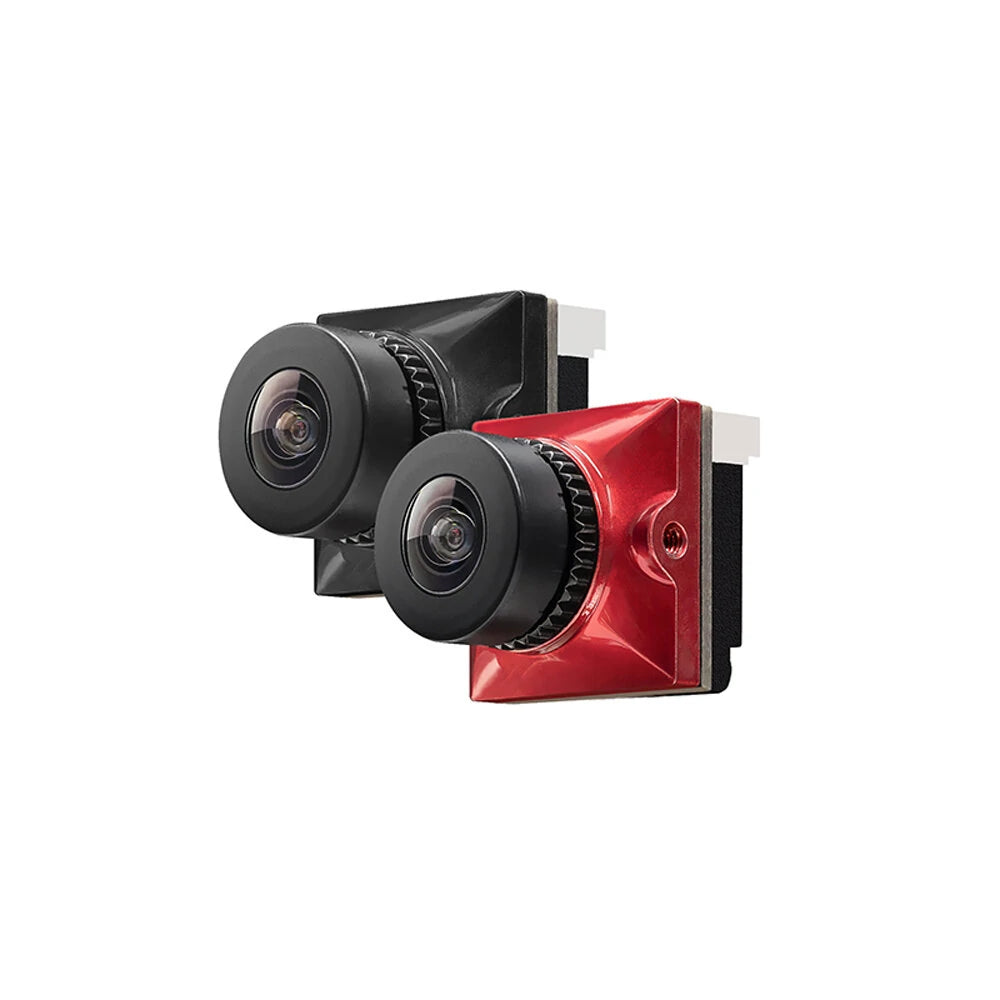

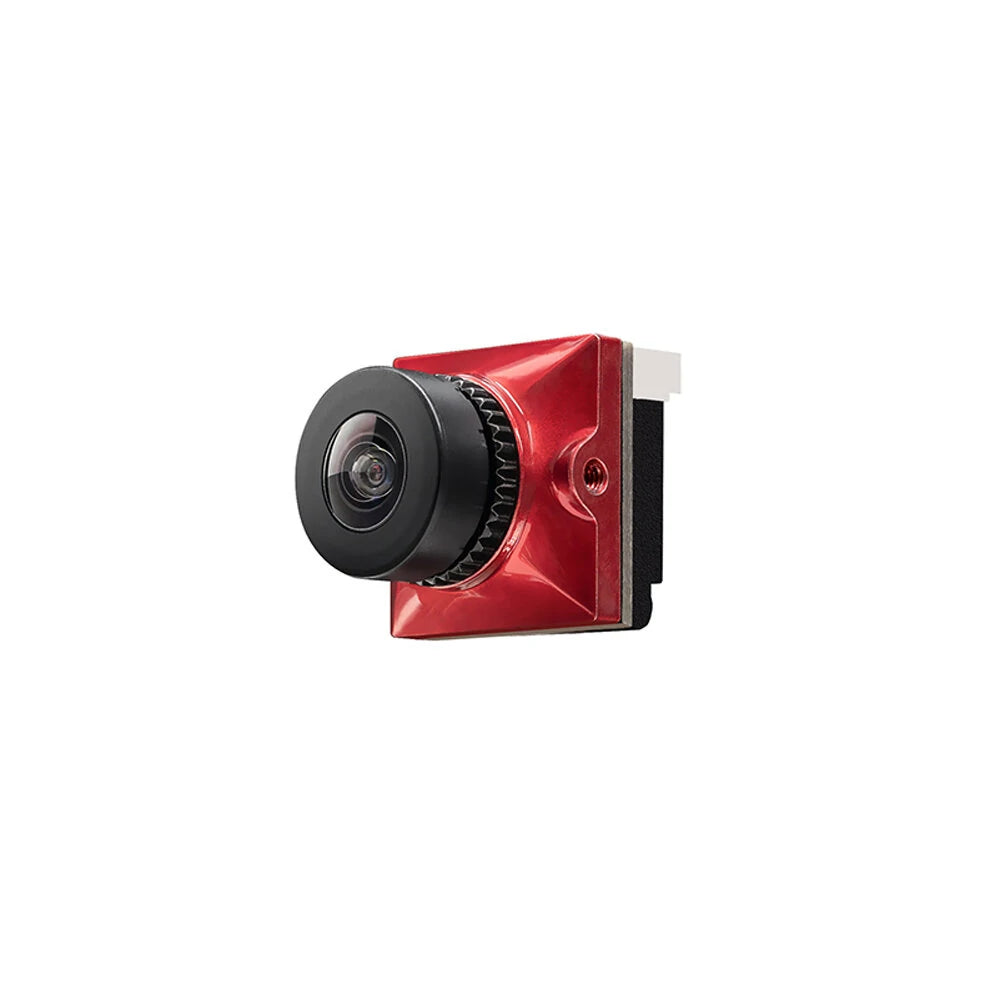

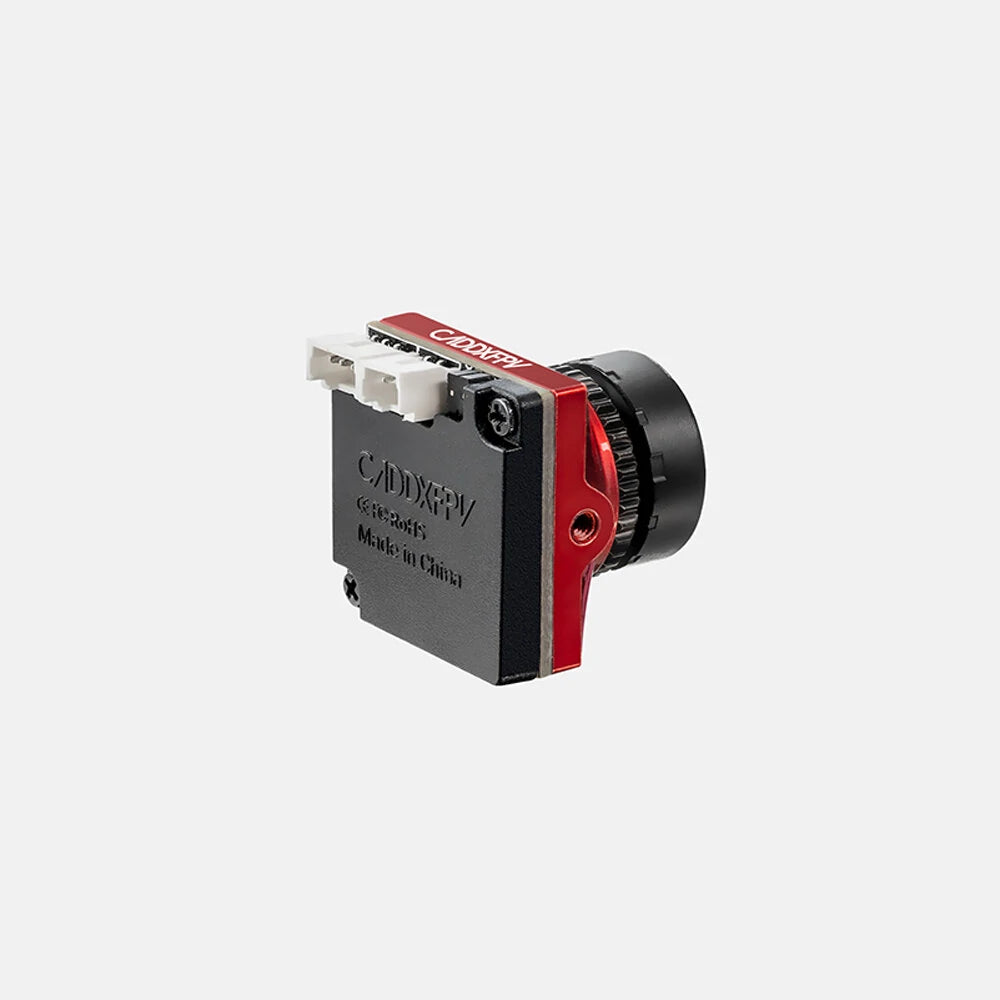

Caddx Ratel 2 (Red) 1/1.8 Inch Starlight 1200TVL 2.1mm Lens FOV 165° NTSC/PAL 16:9/4:3 FPV Camera Switchable

Caddx Ratel 2 1200TVL Starlight FPV Camera – Analog Freestyle Legend

The Caddx Ratel 2 has quickly become the go-to analog camera for Aussie freestyle and racing pilots who refuse to compromise on vision. With its massive 165° field of view, 1/1.8" Starlight sensor and bullet-proof build, the Ratel 2 delivers stunningly clear, colourful footage from bright sunlight to deep twilight sessions – all for a price that makes premium cams blush.

Highlights

• Huge 165° ultra-wide FOV – perfect for nailing tight gates and proximity lines
• 1200TVL resolution with 1/1.8'' Starlight sensor for insane low-light performance (0.0001 Lux)
• True-to-life colours and punchy contrast, even in mixed lighting
• Super WDR + 3DNR keeps the picture clean when you’re flipping between sun and shade
• Switchable NTSC/PAL and 16:9 or 4:3 aspect ratio – suits any goggles or ground station
• Toughened imported lens and reinforced aluminium case shrugs off the hardest Aussie crashes
• Crazy-wide 5-40V input – plug it straight into your 4S-6S LiPo or any BEC without worry
• Featherweight 5.9 g and micro 19x19mm size fits 99 % of frames

Design & Ergonomics

Caddx built the Ratel 2 to survive the sort of punishment we dish out Down Under. The full metal shell and reinforced lens mount laugh at prop strikes and tree hugs, while the compact 19×19×20mm footprint slips into even the tightest cinewhoop or toothpick builds. Soft silicon cables and an included menu board make setup a two-minute job at the field.

Specifications

• Sensor: 1/1.8'' Starlight CMOS
• Resolution: 1200TVL
• Field of View: 165° diagonal
• Lens: 2.1 mm imported glass
• Min. Illumination: 0.0001 Lux
• TV System: Switchable NTSC & PAL
• Aspect Ratio: Switchable 4:3 & 16:9
• WDR: Super Wide Dynamic Range
• Noise Reduction: 3DNR
• Day/Night Mode: Auto / Colour / B&W
• Voltage Range: DC 5-40V
• Operating Temperature: -20°C to +60°C
• Weight: 5.9 g
• Dimensions: 19 × 19 × 20 mm

What’s in the Box

• 1 × Caddx Ratel 2 1200TVL FPV Camera
• 1 × OSD menu board
• 1 × 2-pin silicon power cable
• 1 × 3-pin silicon servo cable
• 1 × 1.5 mm Allen key (for angle adjustment on frames)
• 1 × Warranty card

If you’re chasing the clearest, toughest and most versatile analog picture in Australia right now, the Caddx Ratel 2 is the one. Slap it on, dial it in and go send it harder than ever.
