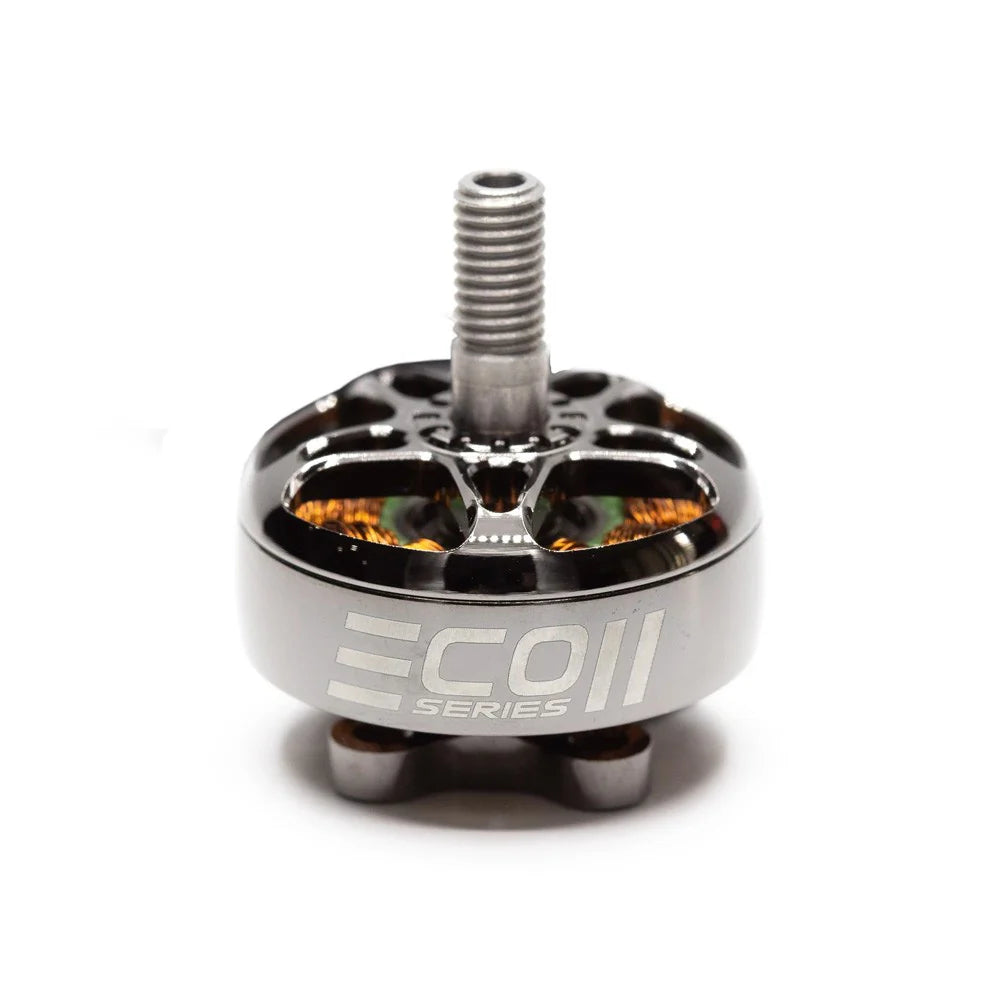

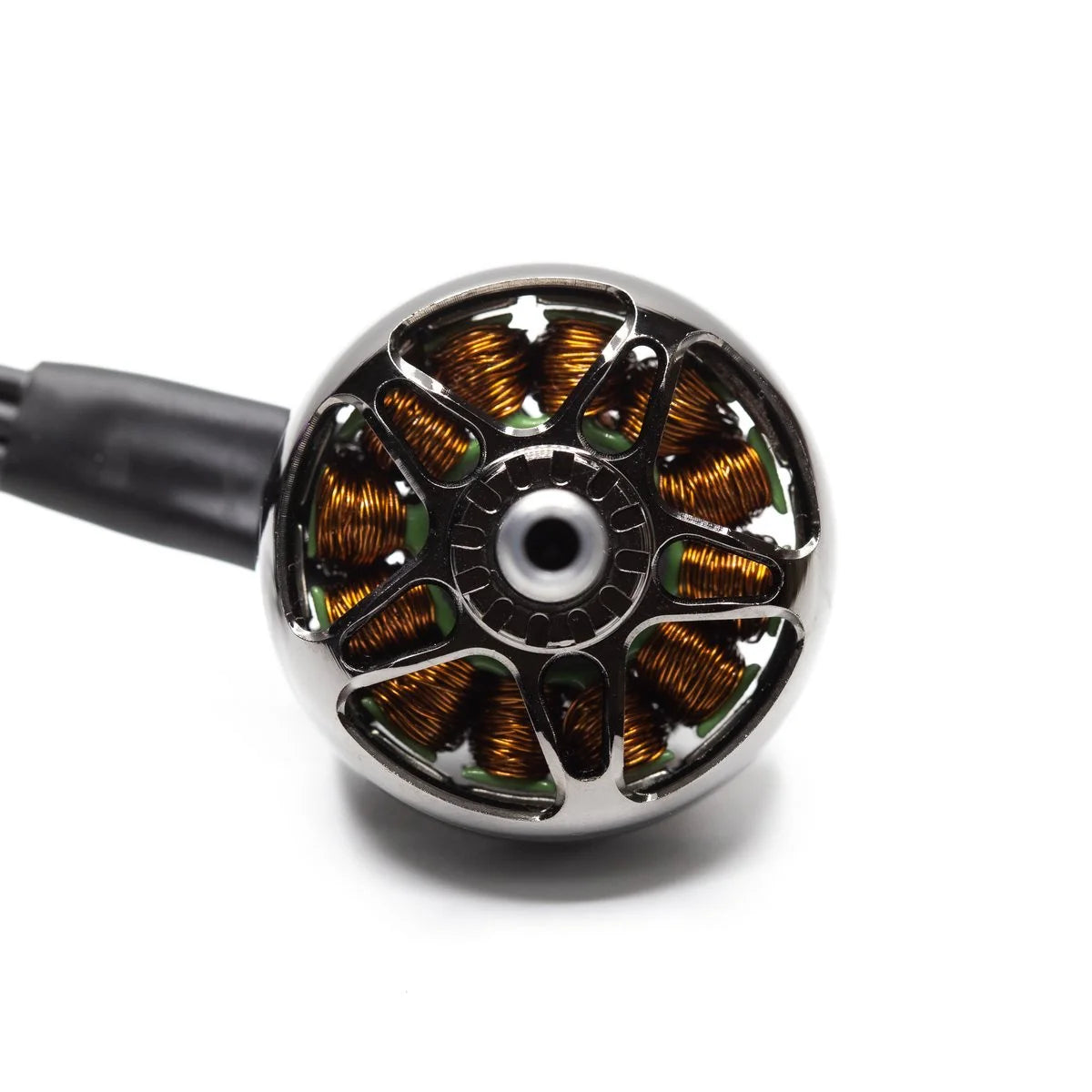

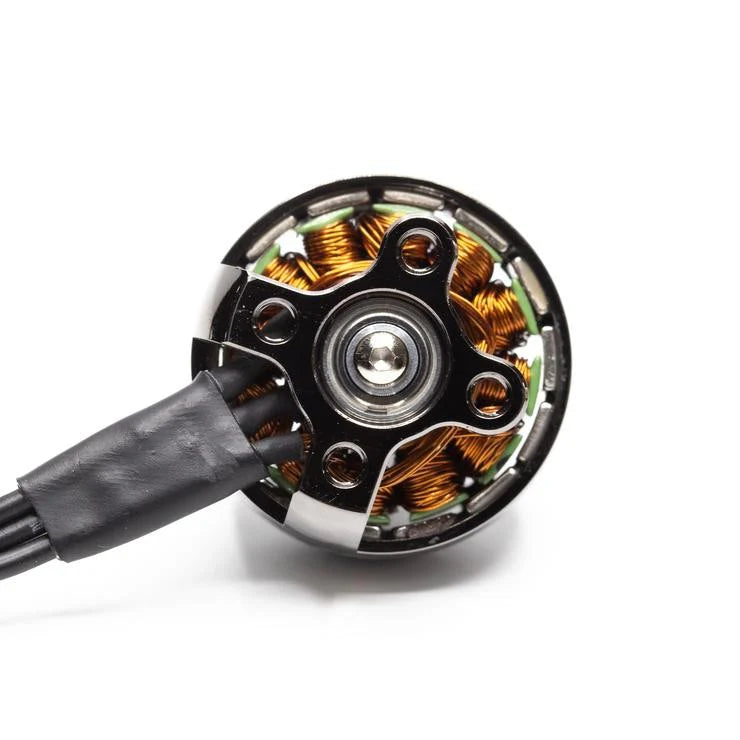

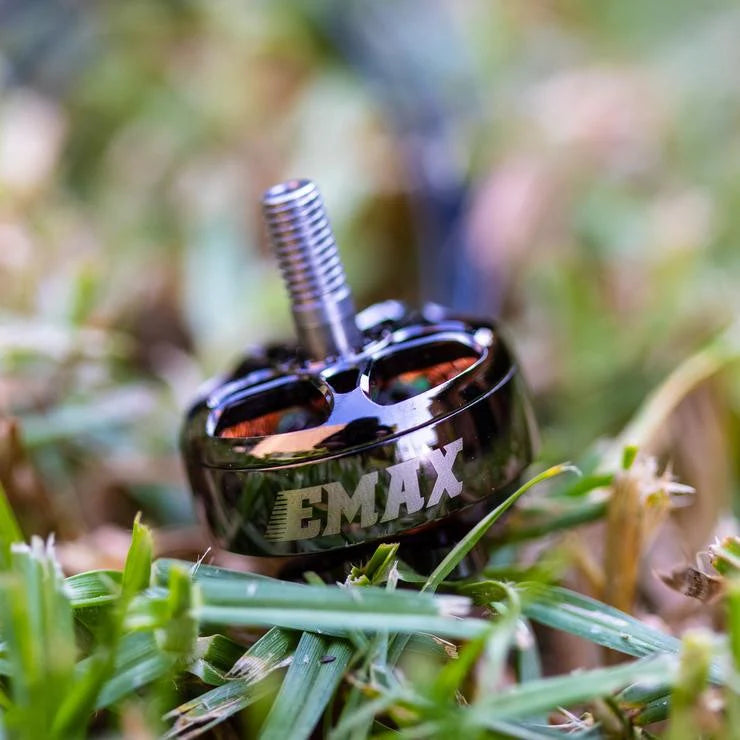

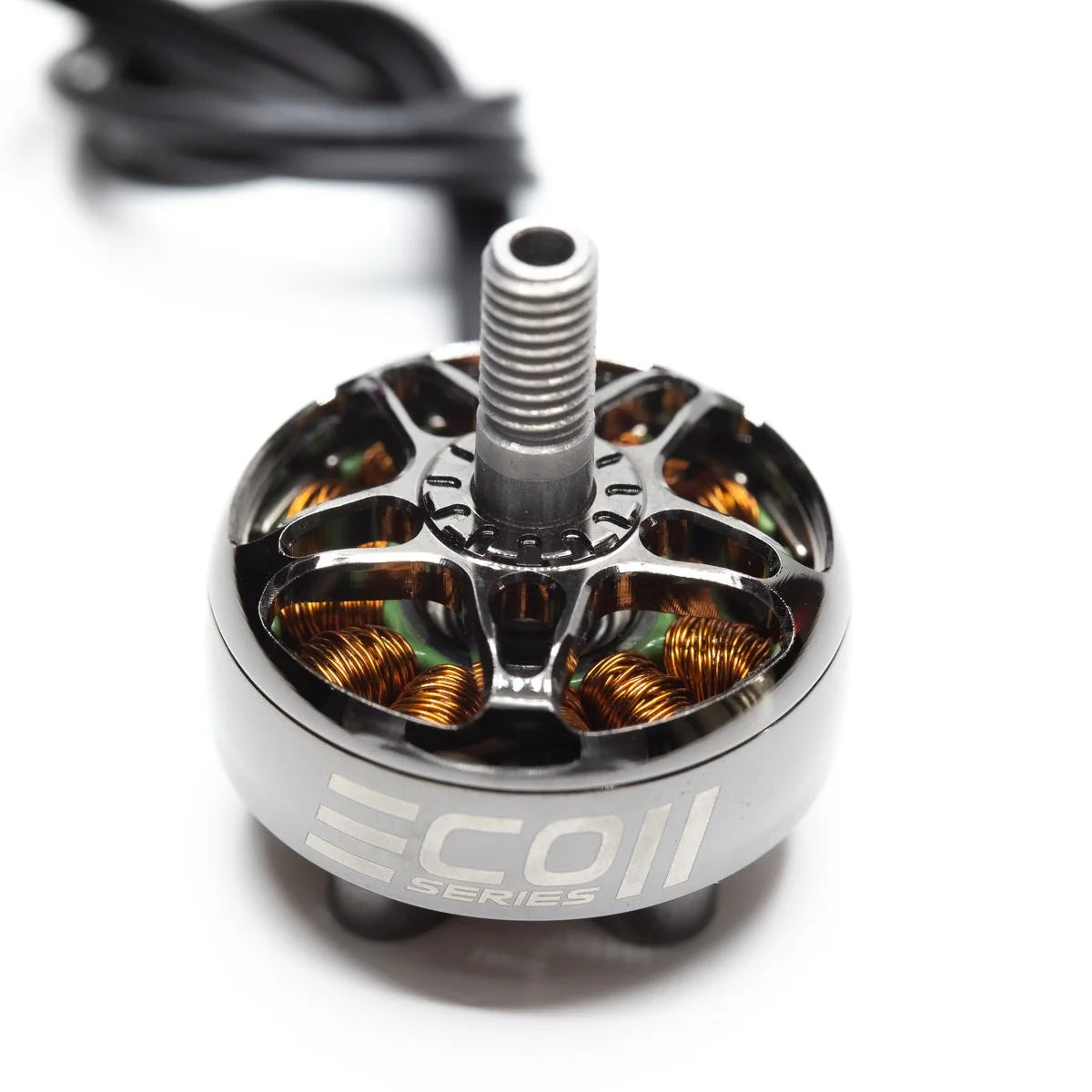

EMAX ECO II 2207 1900KV Motor - Next-Gen Budget Beast

The EMAX ECO II 2207 1900KV Motor is the affordable brushless king that Aussie pilots have been hanging out for. EMAX completely redesigned the legendary ECO line from the ground up, keeping the wallet-friendly price but cranking durability, power and looks to eleven. If you’re chasing smoother freestyle lines, harder-hitting race pace or just a motor that survives a proper Aussie summer smash-fest, the ECO II 2207 delivers.

Highlights

• Full redesign – rounded bell with thicker reinforcements for seriously tough builds
• Blinding mirror-polished finish that looks a million bucks on any rig
• N52SH arc magnets (up from N48) for sharper throttle punch and higher top-end RPM
• Massive torque and thrust boost without jumping up a price bracket
• Buttery-smooth EZO 9 mm bearing – spins like it’s on glass
• Perfect 1900 KV for 6S freestyle and race quads running 5–6″ props

Design & Ergonomics

EMAX threw out the old blueprint and started fresh. The new rounded bell shape isn’t just for show – it teams up with beefier mounting points so the motor laughs off full-speed crashes into gates, dirt or the odd tree. That mirror-chrome finish reflects every bit of sun on those bright Australian afternoons and stays looking fresh pack after pack. Inside, the upgraded N52SH curved magnets shrink the air gap for instant response when you slam the throttle out of a matty flip or punch out of a tight corner. Paired with a genuine EZO 9 mm bearing, vibration is basically non-existent – your footage stays jelly-free and your PIDs stay happy.

Specifications

• Model: EMAX ECO II 2207
• KV: 1900 KV
• Stator Diameter: 22 mm
• Stator Height: 07 mm
• Motor Dimensions: 27.5 × 32.7 mm
• Weight: ~33 g (with short wires)
• Magnet Type: N52SH curved arc magnets
• Bearing: EZO 9 mm
• Mounting Pattern: 16 × 16 mm (M3)
• Wire Length: 140 mm
• Recommended Config: 6S LiPo with 5–6″ props
• Shaft: 4 mm hollow titanium (press-fit)

In the box 1 × EMAX ECO II 2207 1900KV Motor
                   4 × M3 mounting screws

Mounting & Compatibility

Straightforward 16 × 16 mm hole pattern fits pretty much every modern 2207-sized frame on the market – think iFlight, GEPRC, Diatone, ImpulseRC, you name it. The 4 mm titanium shaft is press-fit and stupidly strong, and the short 140 mm silicone wires keep things tidy on 5–6 inch X-frame builds. Run it on 6S with your favourite Ethix or HQ props and you’ll feel the extra grunt straight away.

Upgrade your quad without breaking the bank – grab the EMAX ECO II 2207 1900KV Motor today and rip harder, crash happier, and look flash doing it!
