FlyFishRC M10 Mini GPS Module

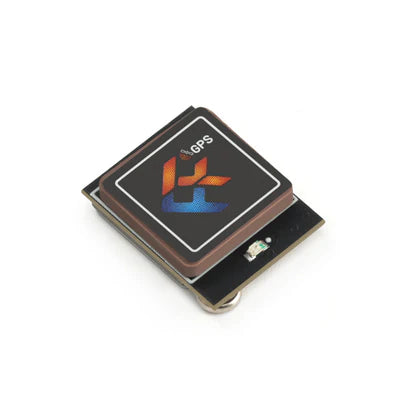

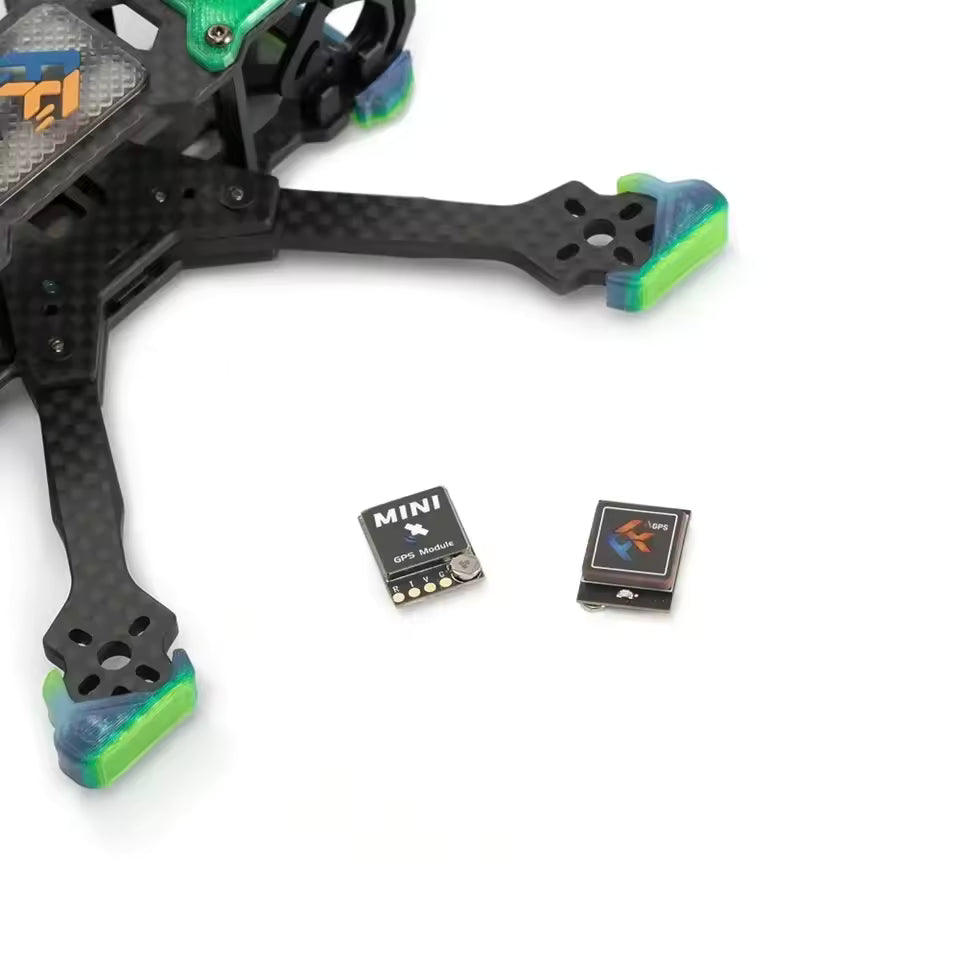

The FlyFishRC M10 Mini GPS Module is the go-to choice for Aussie pilots building lightweight 5-inch freestyle, long-range quads or fixed-wing setups that demand fast, reliable satellite lock without the bulk. Running a cutting-edge UBLOX M10 chip and a 12x12mm RHCP ceramic patch antenna, this 2.4g unit delivers pinpoint positioning even when modern autopilots like INAV or ArduPilot are running pure-GPS navigation, no compass required. Perfect for clean, minimal stacks where every gram and millimetre counts.

Highlights

• Featherweight & Tiny: Just 2.4g and 16.2 x 12.3 x 4.9mm—barely noticeable on any build.
• Blazing Satellite Acquisition: Cold starts ~30s, hot starts 1-3s and -167dBm sensitivity locks fast, even in challenging spots.
• Compass-Free Ready: Pure GPS performance that today’s autopilots love for return-to-home and waypoint missions.
• Betaflight/INAV/ArduPilot Friendly: Straight 115200 baud setup on any open UART—plug it in and go.

Design & Ergonomics

Built for real-world flying, the FlyFishRC M10 Mini GPS Module keeps things dead simple. The low-profile board tucks neatly under a top plate or inside a wing, the included battery-strap mount makes installation a 10-second job, and the four 30AWG silicone wires reach anywhere on the stack. RHCP ceramic antenna shrugs off flips and tumbles, while the wide 3.3–5.5V input plays nice with every 5V pad out there.

Specifications

• Model: FlyFishRC M10 Mini GPS Module
• Chipset: UBLOX M10 (10th generation)
• Protocol: UBLOX / NMEA
• Antenna: 12x12mm RHCP ceramic patch
• Baud Rate: 4800–115200bps (set 115200bps in Betaflight/INAV/ArduPilot)
• Speed Accuracy: 0.05m/s
• Cold Start: ~30s
• Hot Start: 1–3s
• Tracking Sensitivity: -167dBm
• Input Voltage: 3.3–5.5V (5V typical)

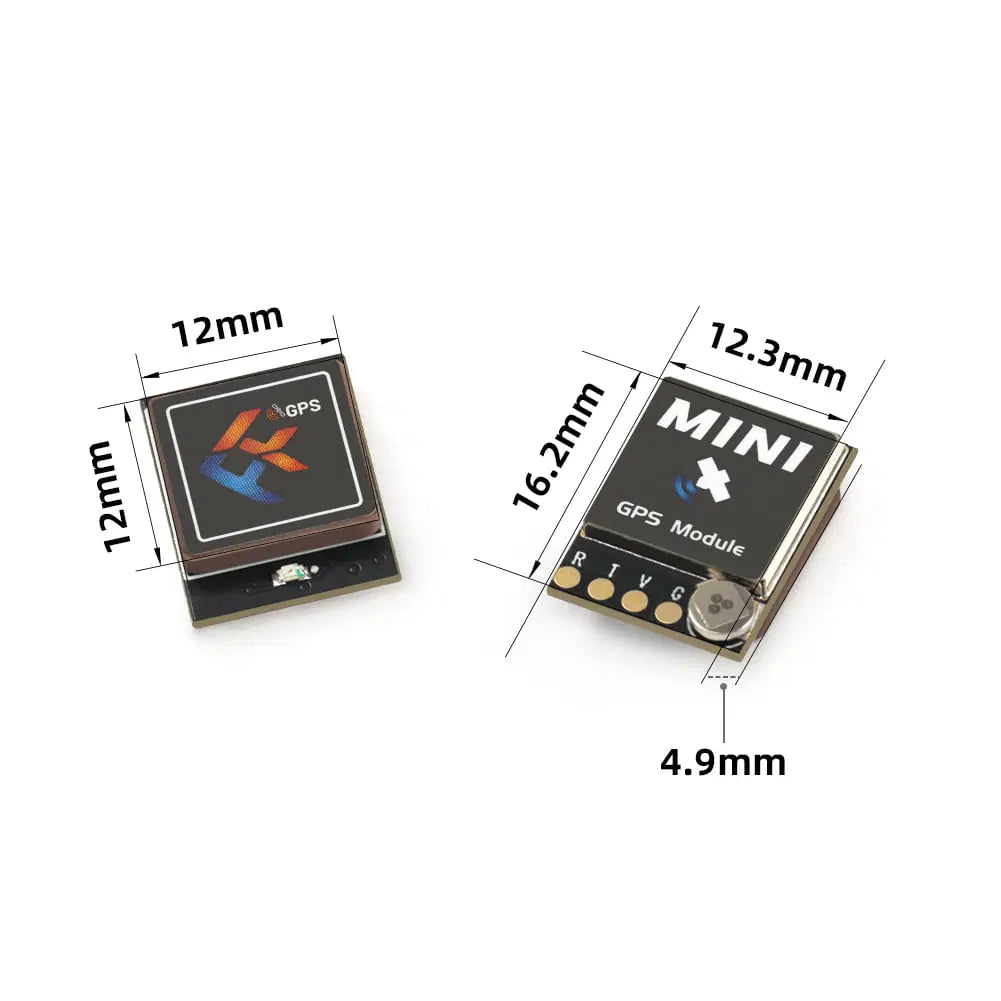

• Size: 16.2 x 12.3 x 4.9mm
• Weight: 2.4g (±0.5g)

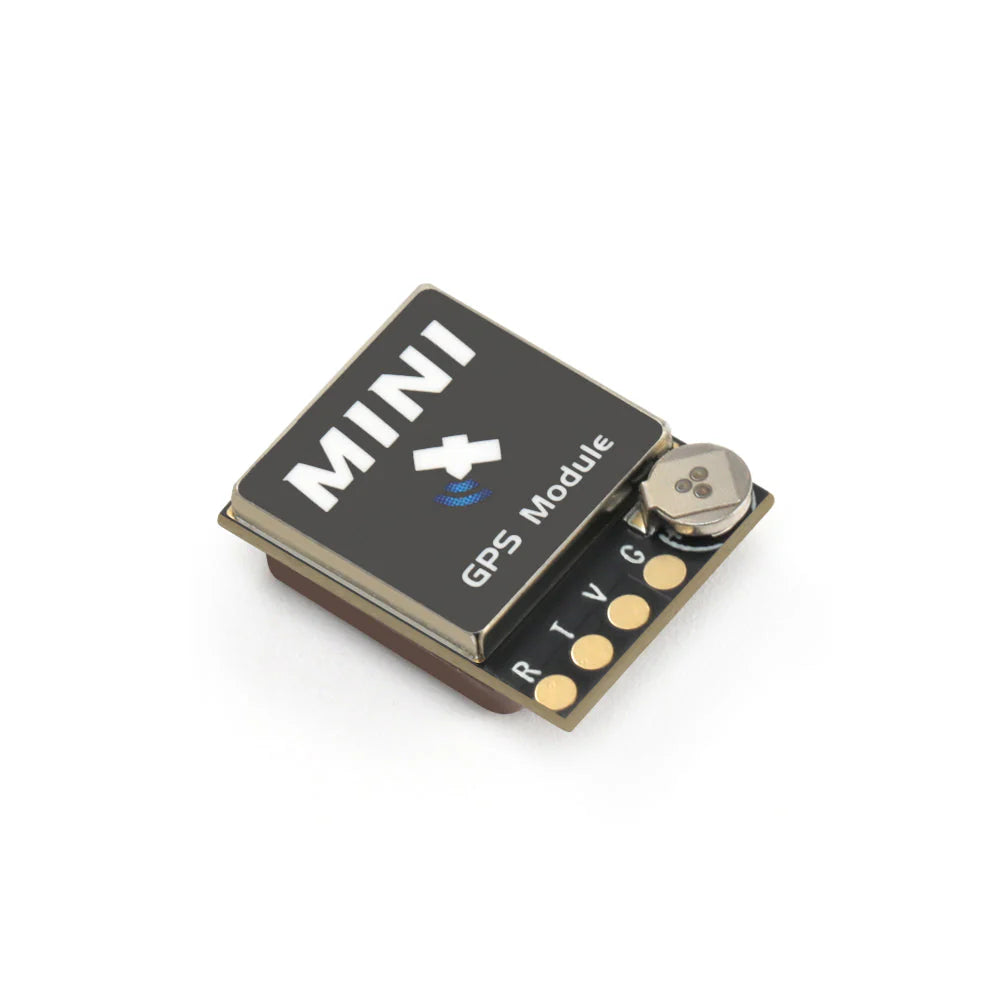

• Pinout: VCC (5V), GND, TX, RX
