RadioMaster RP1 Nano ExpressLRS 2.4GHz Receiver - Compact ELRS Receiver

The RadioMaster RP1 Nano ExpressLRS 2.4GHz Receiver is a compact, open-source option based on ExpressLRS firmware, featuring an ESP8285 MCU and SX1280 RF chip for low-latency 2.4GHz operation. With a built-in TCXO for temperature stability and WiFi for easy firmware updates, it's suited for FPV quads, fixed-wing models or any build needing reliable CRSF telemetry in a nano footprint.

Highlights

• ESP8285 MCU and SX1280 RF chip for ELRS protocol support
• Built-in TCXO to maintain frequency accuracy across temperature changes
• WiFi-enabled for over-the-air firmware upgrades and WebUI configuration

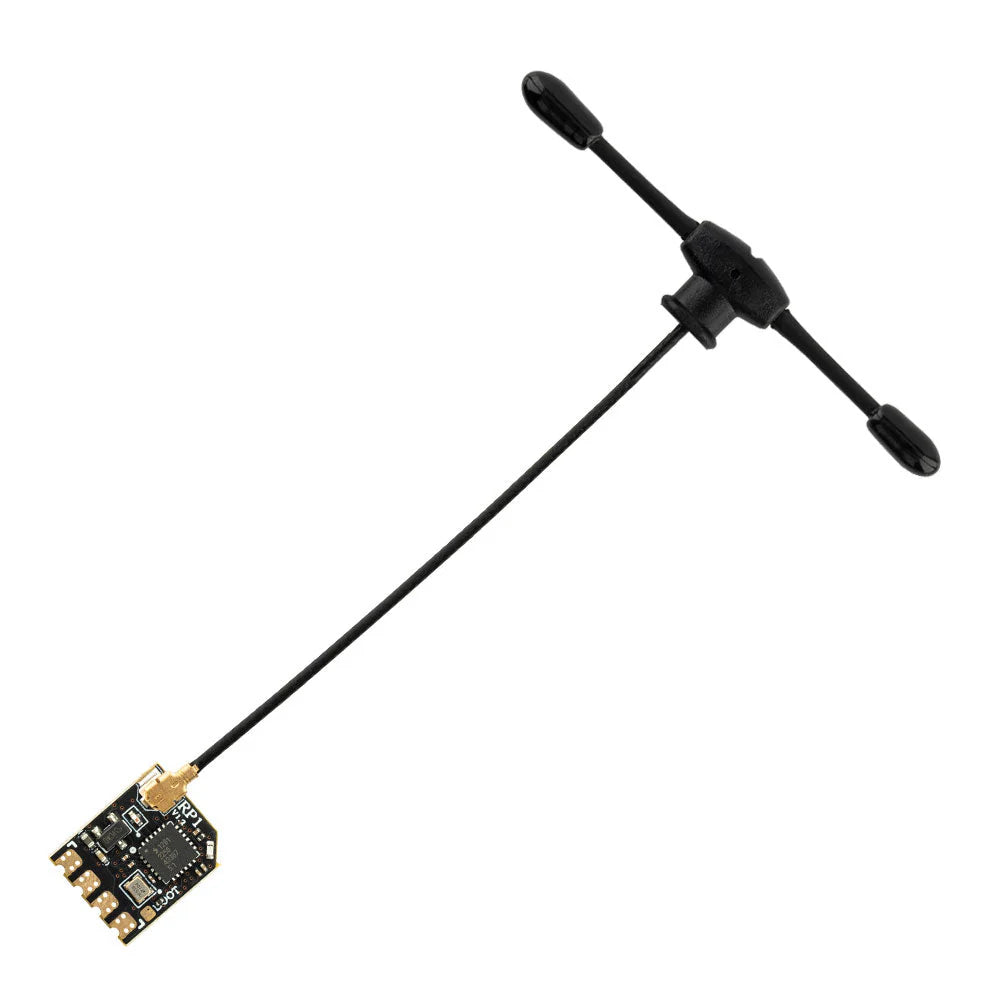

• UFL connector for flexible antenna options, including the included 65mm T-ant

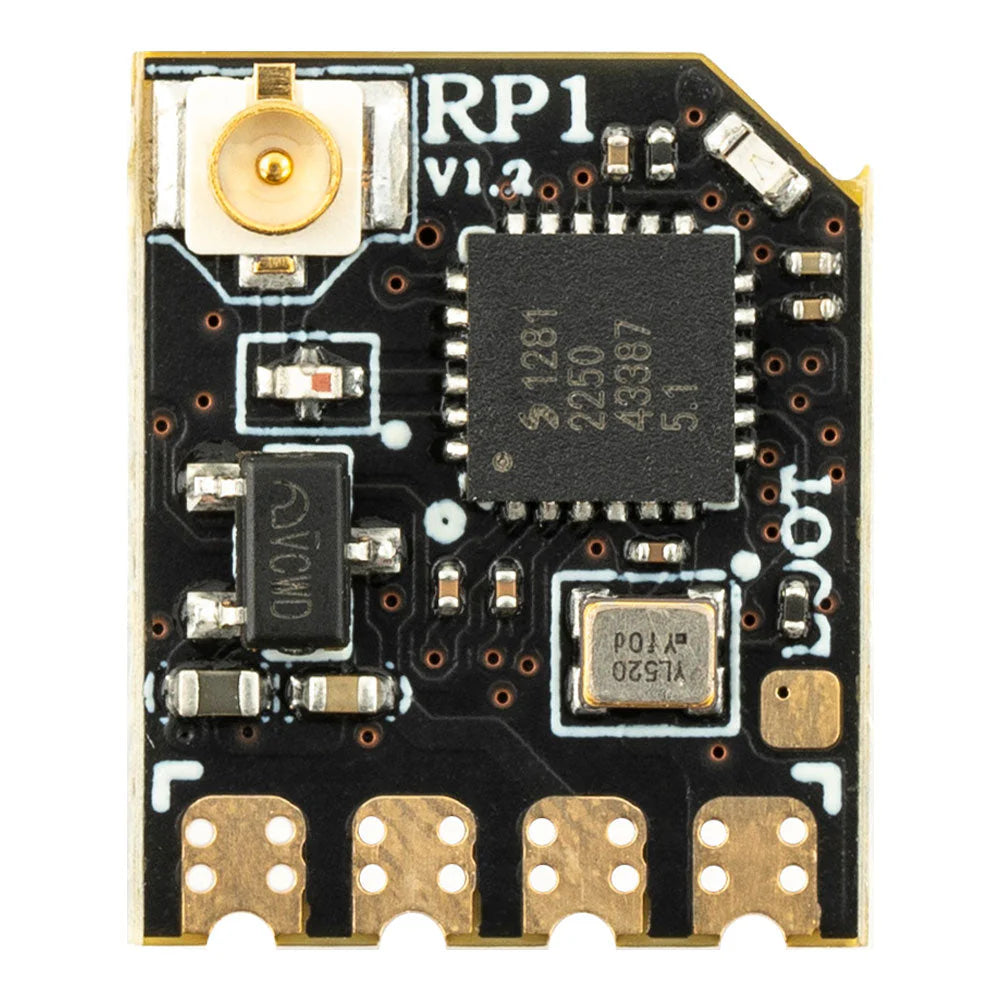

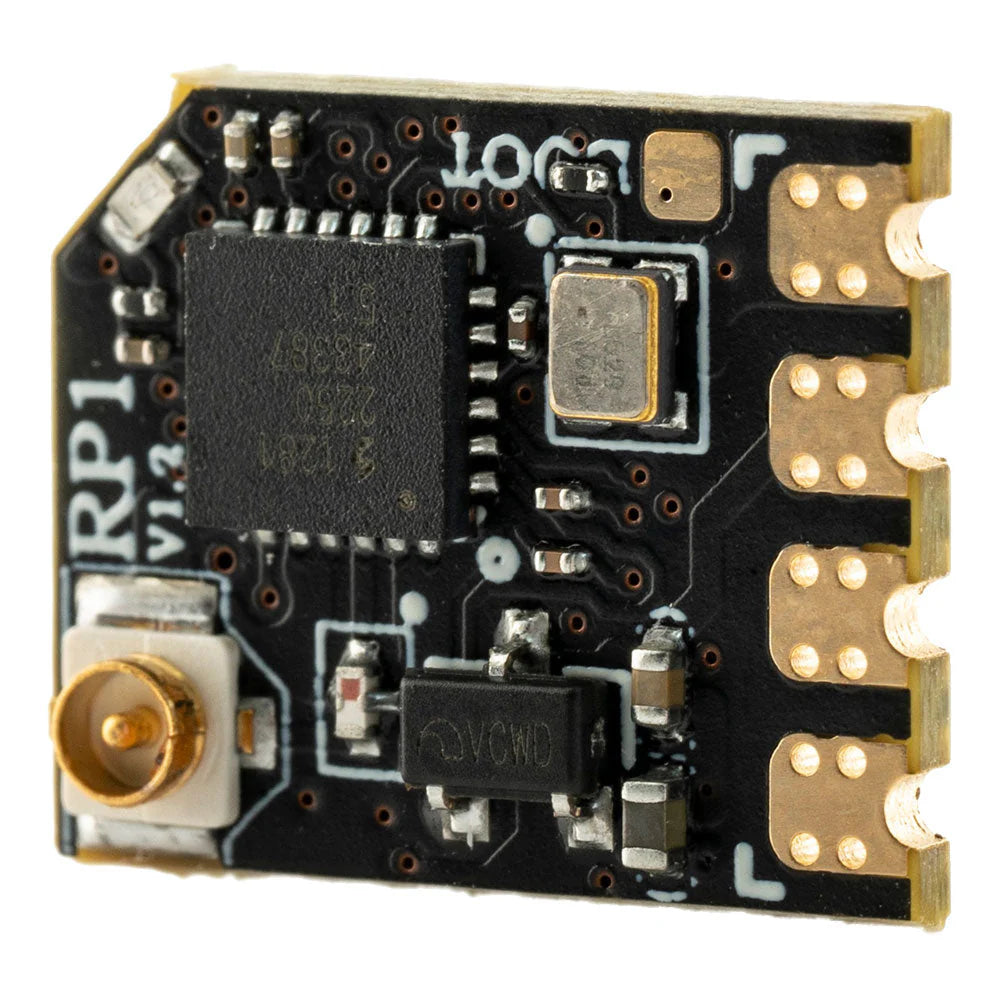

• Improved PCB with better heat dissipation and easier solder pads
• Top-mounted LED for status indication

Design & Ergonomics

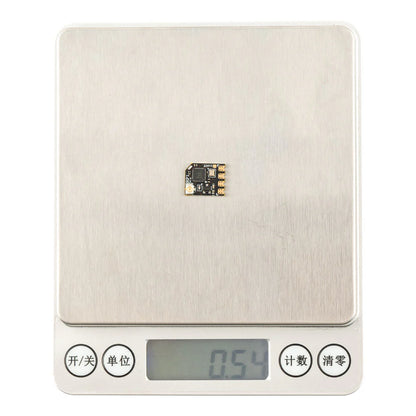

The RP1 uses a nano-sized PCB (13 × 11 × 3 mm) that weighs just 2.2 g with antenna, making it easy to tuck into tight spaces on 5-inch quads or smaller models. The UFL socket allows swapping antennas for range tweaks, while the rigid T-antenna provides a baseline for general use. Solder pads are enlarged for straightforward wiring to flight controllers, and the overall layout prioritises signal integrity with the TCXO minimising drift in varying Aussie conditions — from coastal humidity to outback heat.

Specifications

• Item: RP1 Nano ExpressLRS 2.4GHz Receiver
• Type: ISM
• MCU: ESP8285
• RF Chip: SEMTECH SX1281
• Telemetry RF Power: 10 mW
• Antenna: 65 mm 2.4 GHz T Antenna (UFL)
• Frequency Range: 2.404–2.479 GHz
• Max Receive Refresh Rate: 500 Hz / F1000 Hz
• Min Receiver Refresh Rate: 25 Hz
• Working Voltage: 5 V

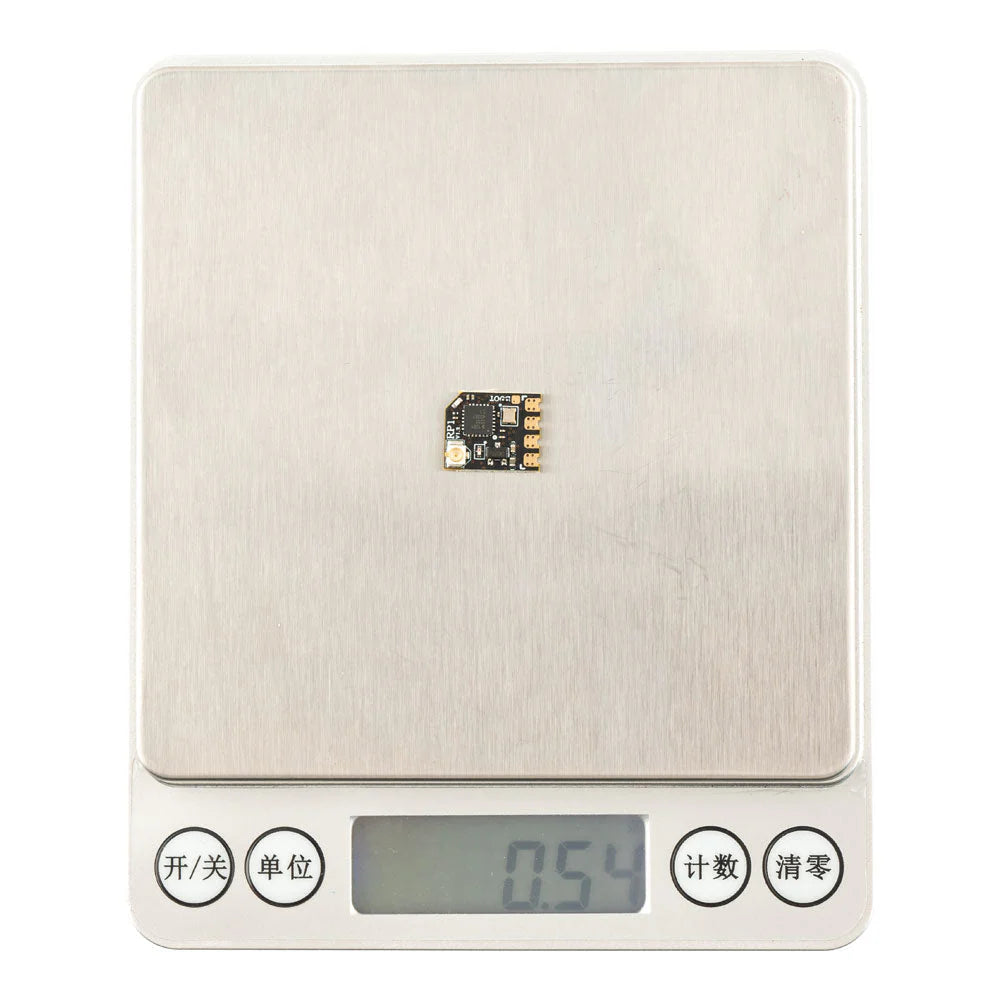

• Weight: 2.2 g (including antenna)

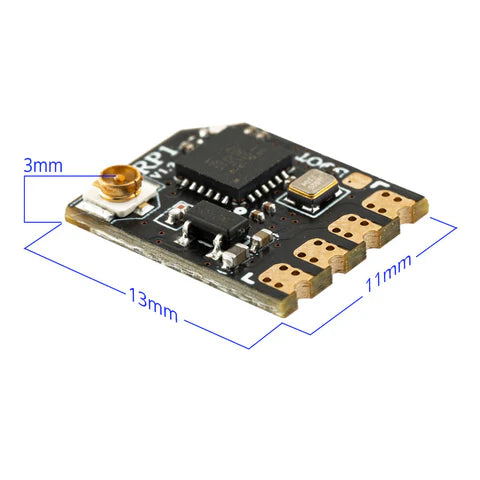

• Dimensions: 13 × 11 × 3 mm
• Firmware Version: ExpressLRS v2.4 pre-installed
• FW Target: RadioMaster RP1/2 2400 RX
• Bus Interface: CRSF

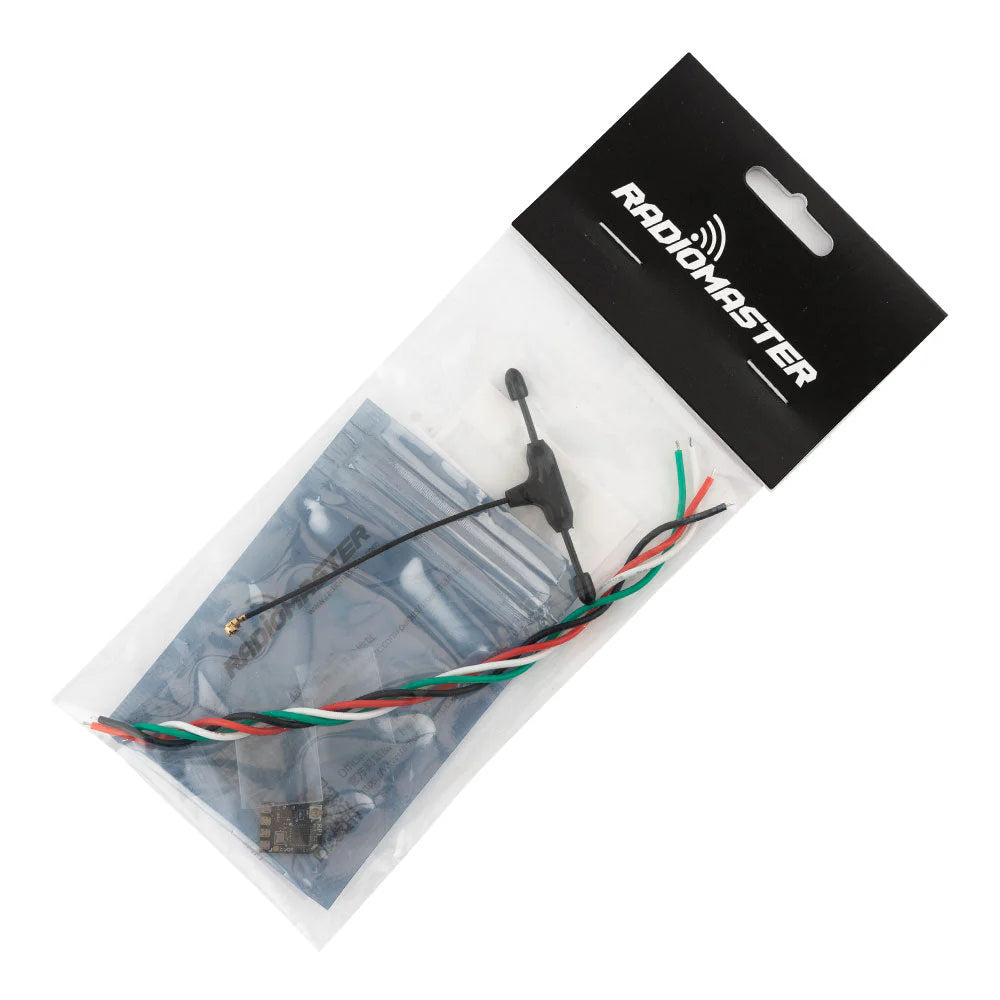

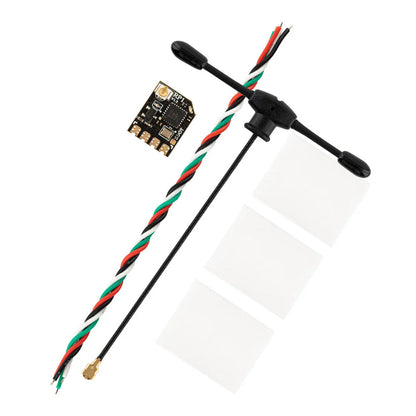

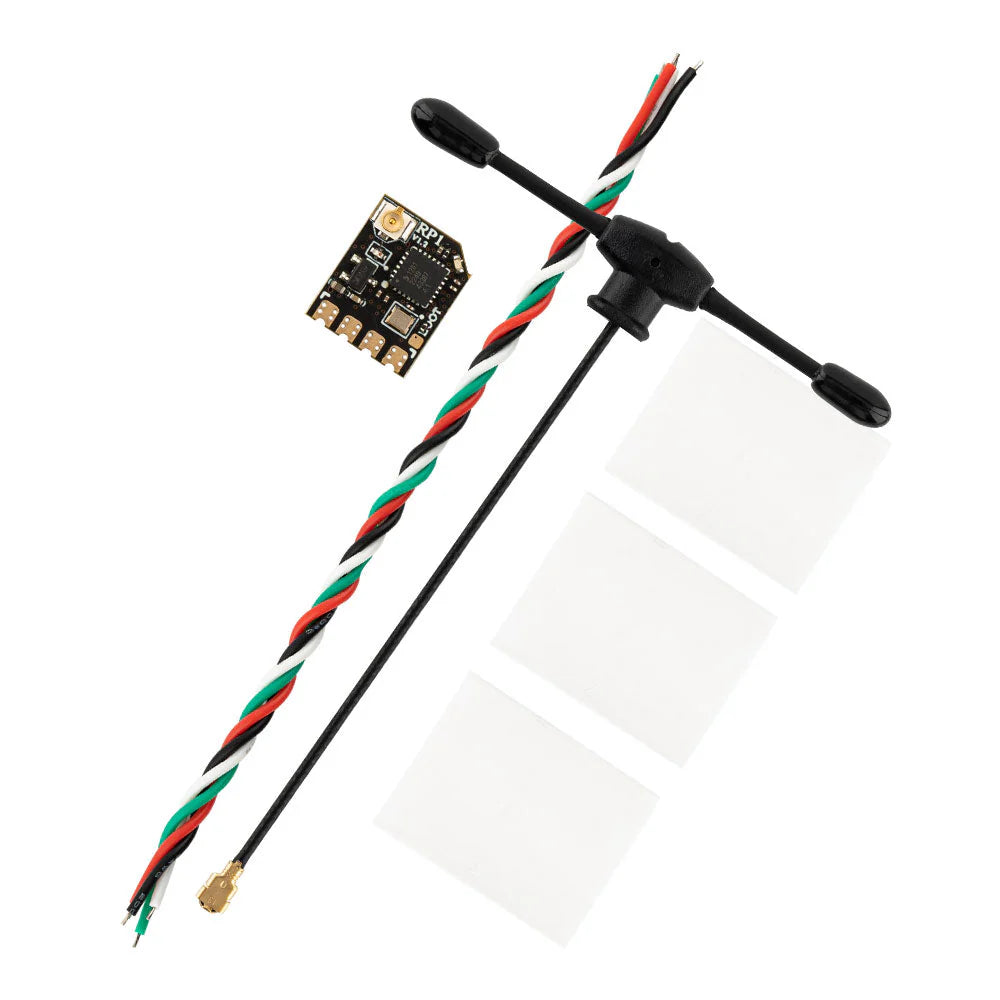

In the Box

• 1 × RadioMaster RP1 Nano ExpressLRS 2.4GHz Receiver
• 1 × 65 mm UFL 2.4 GHz T Antenna
• 1 × User Manual
• 1 × CRSF Wire

No batteries included — power it off your FC's 5 V rail. For more on ExpressLRS, check out https://www.expresslrs.org/.
