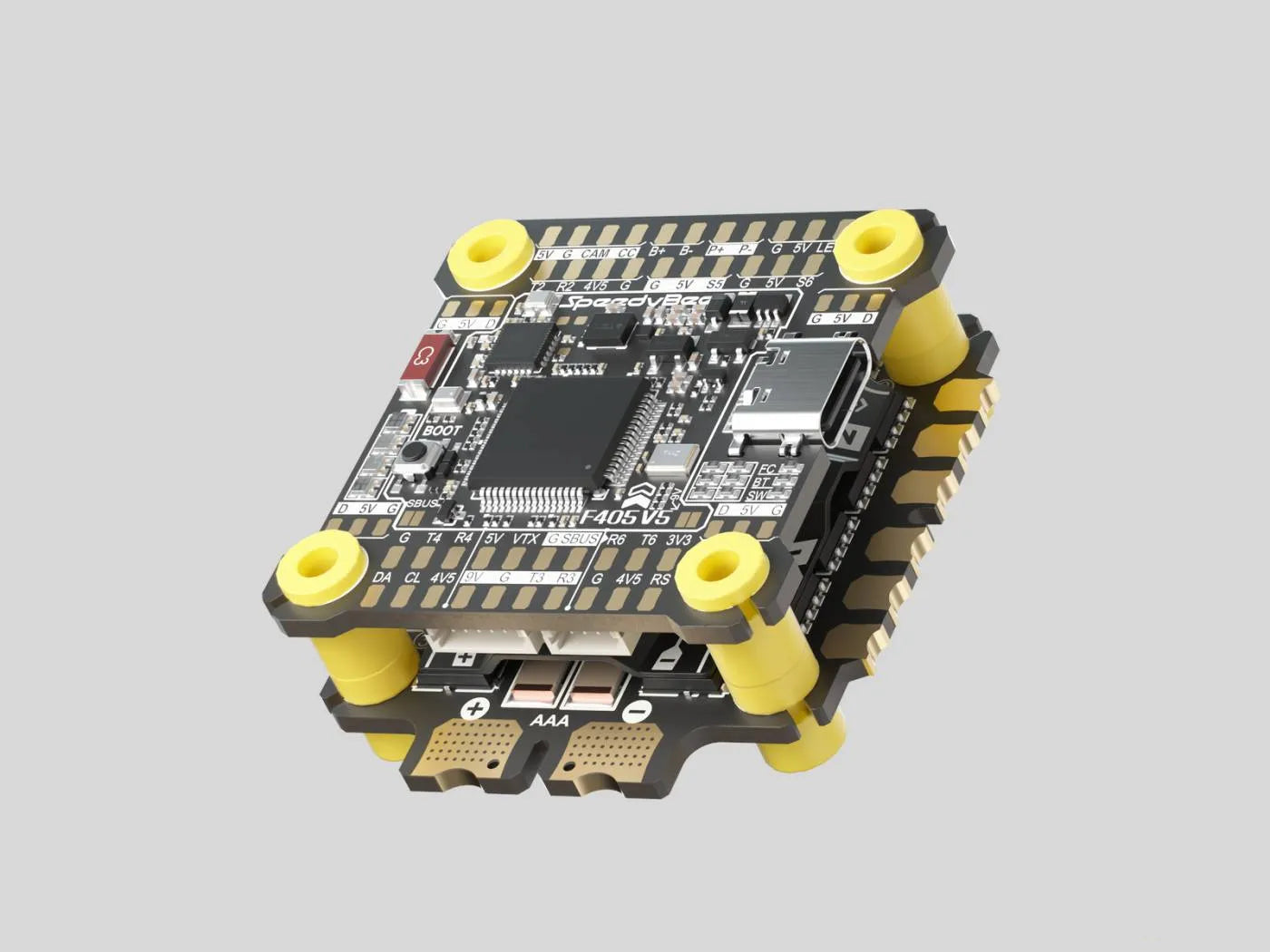

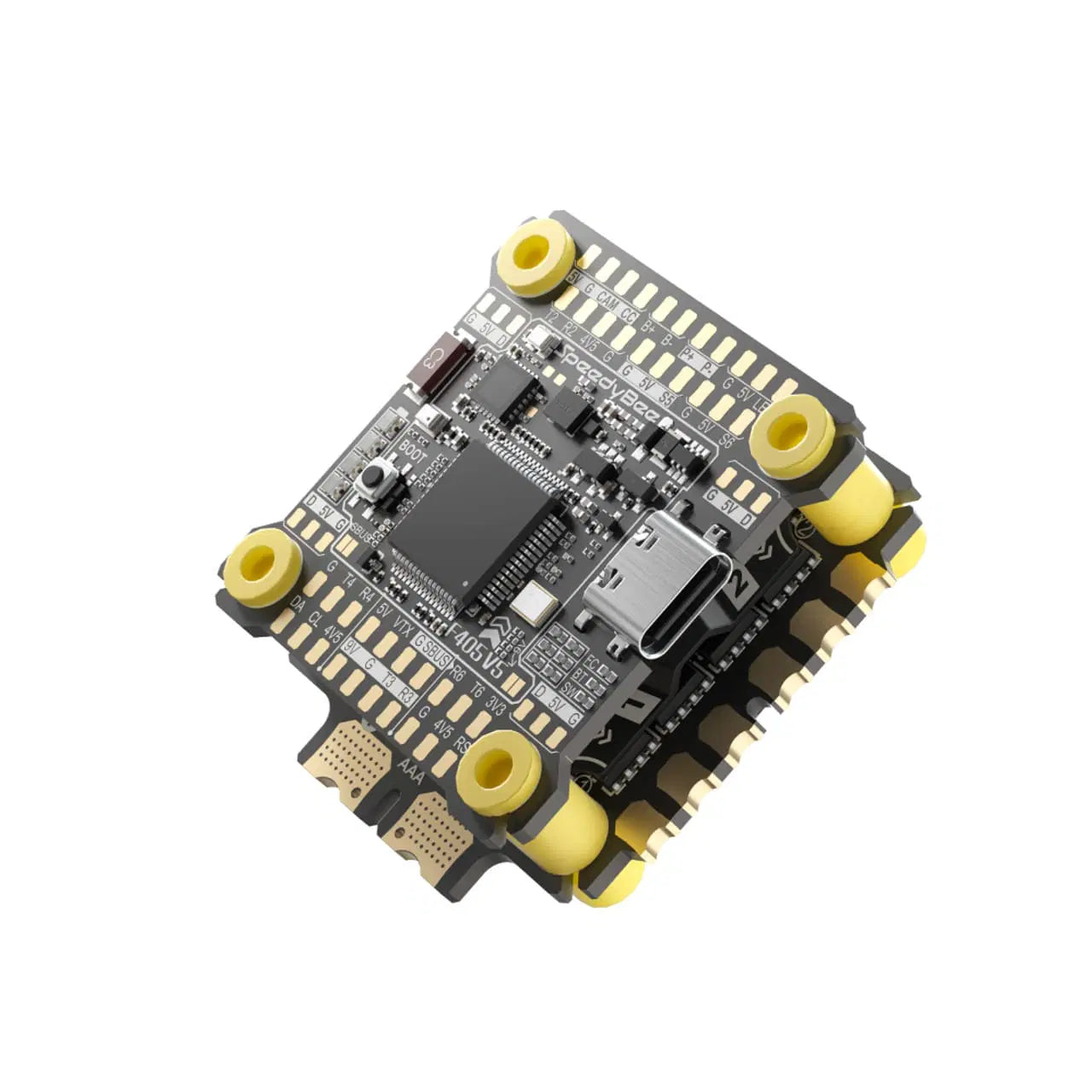

SpeedyBee F405 V5 + OX32 55A 30x30 Stack

SpeedyBee F405 V5 + OX32 55A 30x30 Stack

The SpeedyBee F405 V5 + OX32 55A 30x30 Stack is the hassle-free, high-power heart of any 3-6S freestyle, race or cinematic build in Australia. Bluetooth tuning from your phone, wireless firmware updates, a massive 16MB blackbox and a rock-solid 55A (70A burst) 4-in-1 ESC with built-in TVS protection and a 1000µF cap. Works perfectly with DJI O3/Avatar digital systems or any analogue VTX—plug in, bind, and fly.

Highlights

• Bluetooth Phone Tuning: Change PIDs, rates and filters mid-session via the SpeedyBee app
• Wireless Firmware Flashing: Update Betaflight over the air—no laptop required
• True Plug-and-Play: 6-pin DJI O3 connector or standard pads for analogue—your video system is live in seconds
• 55A Continuous / 70A Burst: Handles the biggest motors on 6S with ease
• 16MB Blackbox: Record every detail of your flights
• Bulletproof Power Handling: TVS diode + massive 1000µF solid cap included

Design & Ergonomics

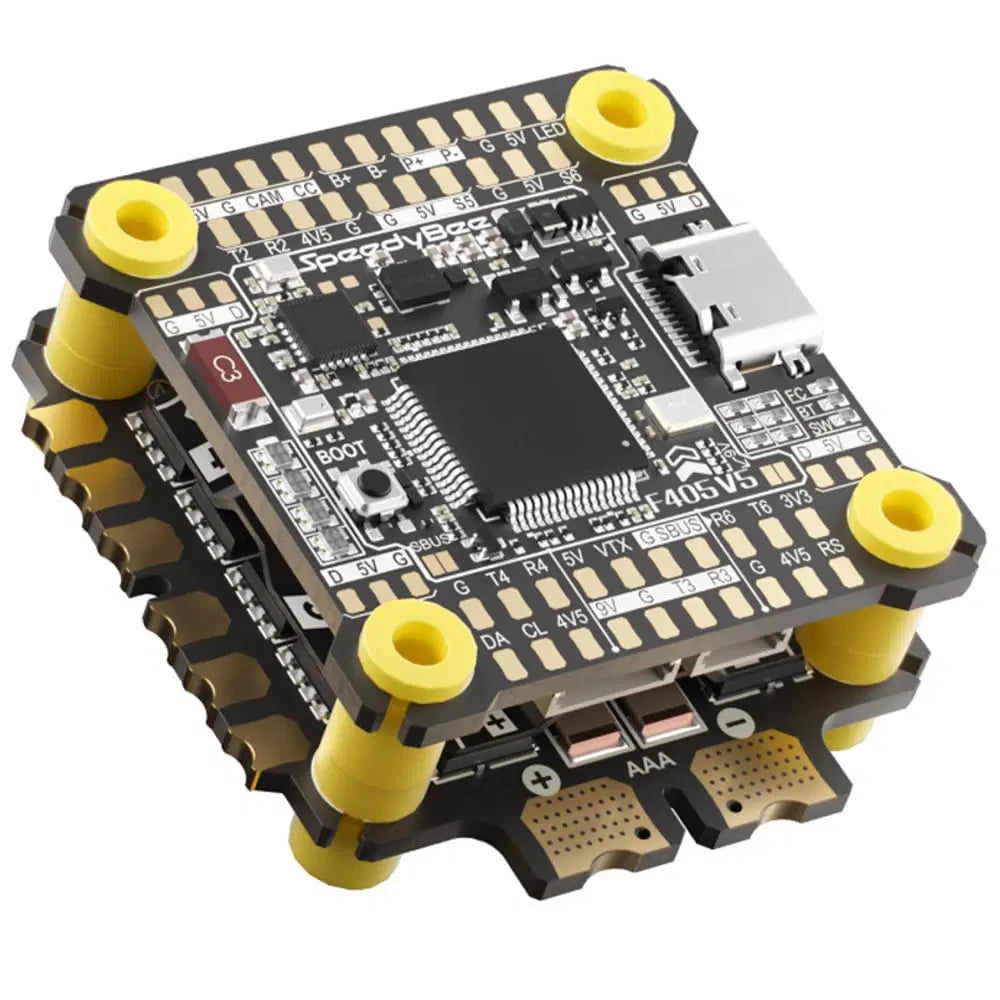

SpeedyBee made this stack for pilots who just want to fly. Clean 30.5 × 30.5mm layout with side-opening holes, heaps of 5V/9V pads for receivers, LEDs or cameras, and a chunky heatsink that keeps the OX32 cool on long packs. Total weight under 28g means it won’t slow you down, but it’s tough enough for daily bashing.

Specifications

• Flight Controller: SpeedyBee F405 V5
  • MCU: STM32F405 / Gyro: ICM42688P
  • Bluetooth: Full wireless tuning & flashing
  • Blackbox: 16MB onboard
  • OSD: AT7456E / Baro: Built-in
  • Video: 6-pin DJI plug or solder pads for analogue
  • BEC: 5V@1.5A + 9V@3A
  • Mounting: 30.5 × 30.5mm (Ø4mm)
  • Weight: 8.1g
• ESC: SpeedyBee OX32 55A 4-in-1
  • Continuous / Burst: 55A / 70A per motor
  • Input: 3–6S LiPo
  • Protocol: DSHOT300/600 + telemetry
  • Protection: TVS + 1000µF solid cap (included)
  • Current Sensor: Yes (Scale 27, Offset -2644)
  • Mounting: 30.5 × 30.5mm (Ø4mm)
  • Weight: 19.1g
• Total Stack Weight: ~27.2g
• Firmware: Betaflight 4.5.2 (target SPEEDYBEEF405V5)

Grab the SpeedyBee F405 V5 + OX32 55A stack and get back to flying instead of fiddling. Works flawlessly whether you’re running full digital HD or good old analogue.
