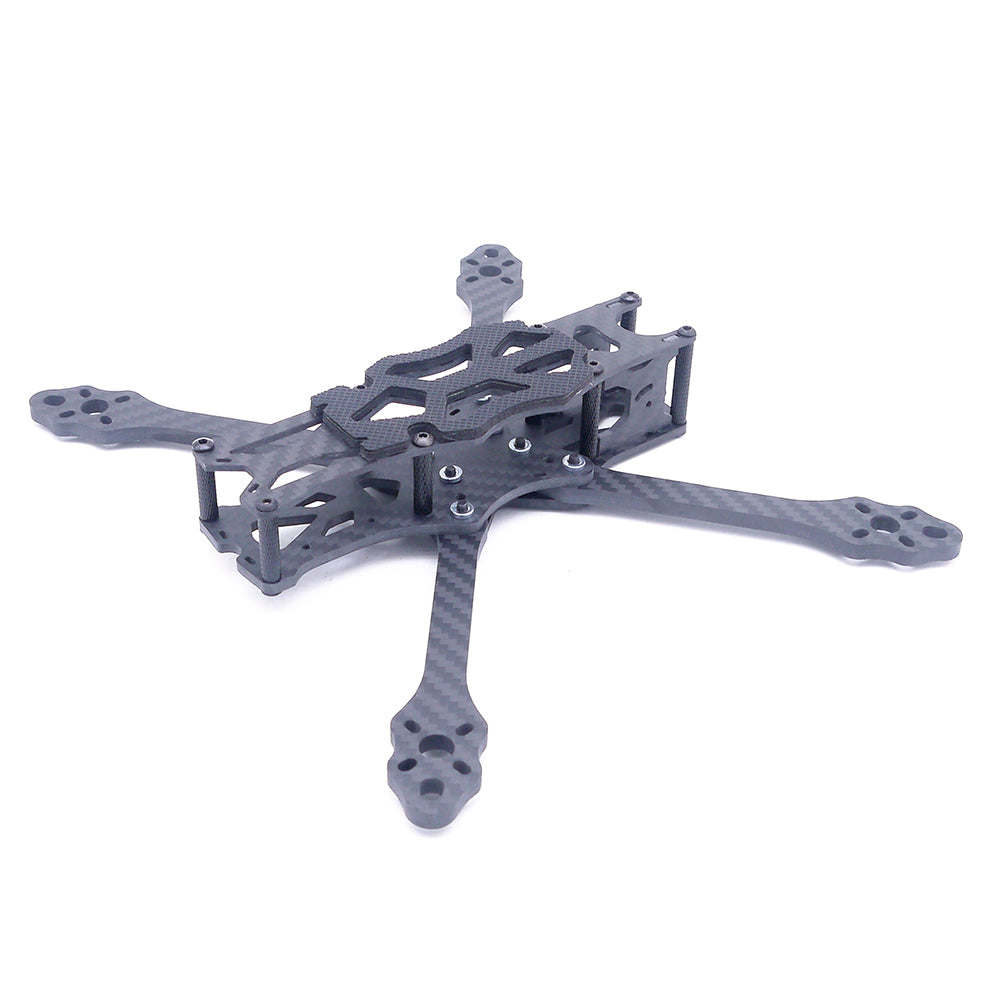

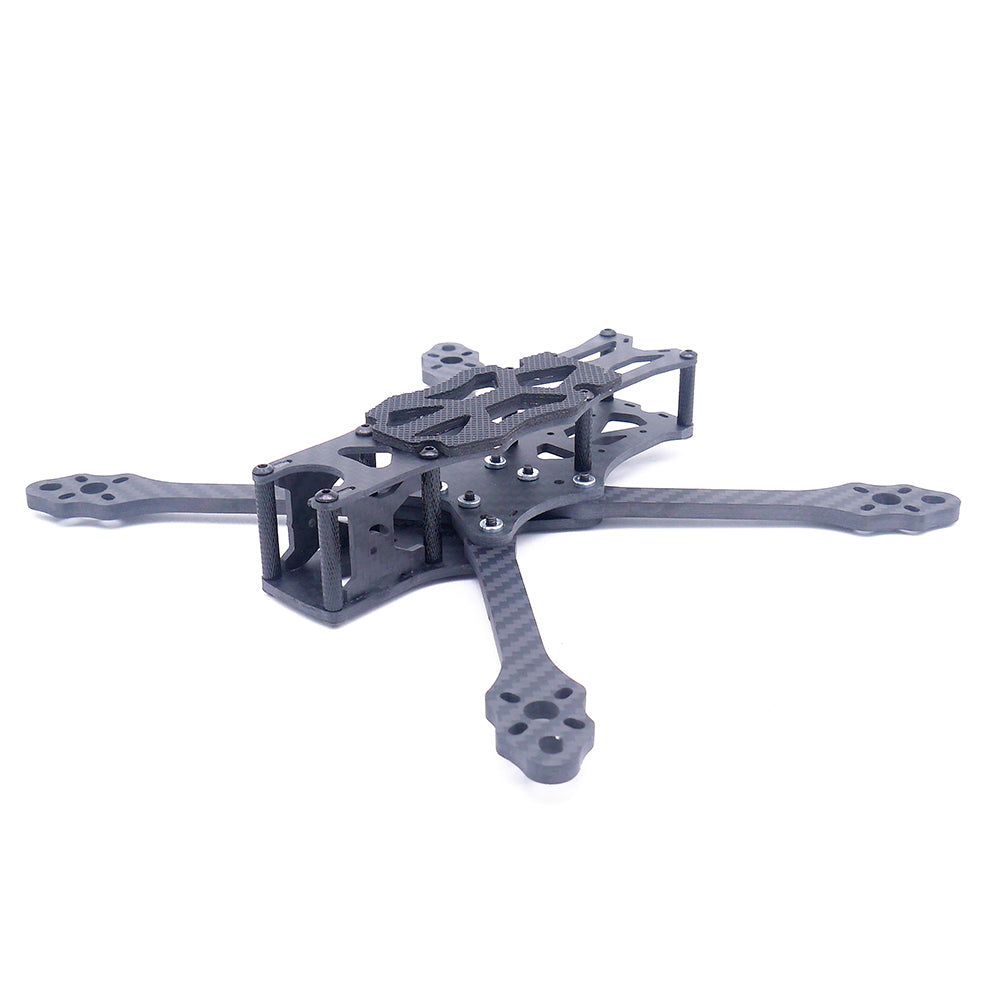

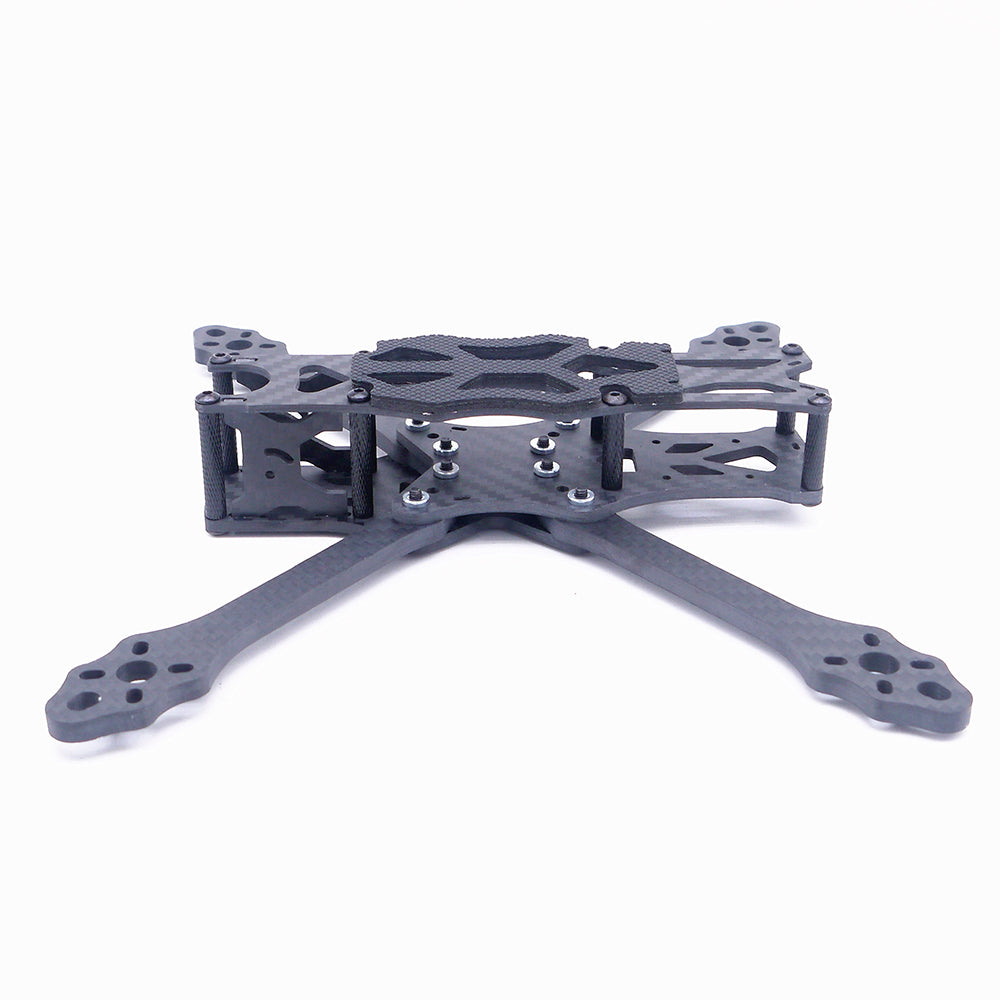

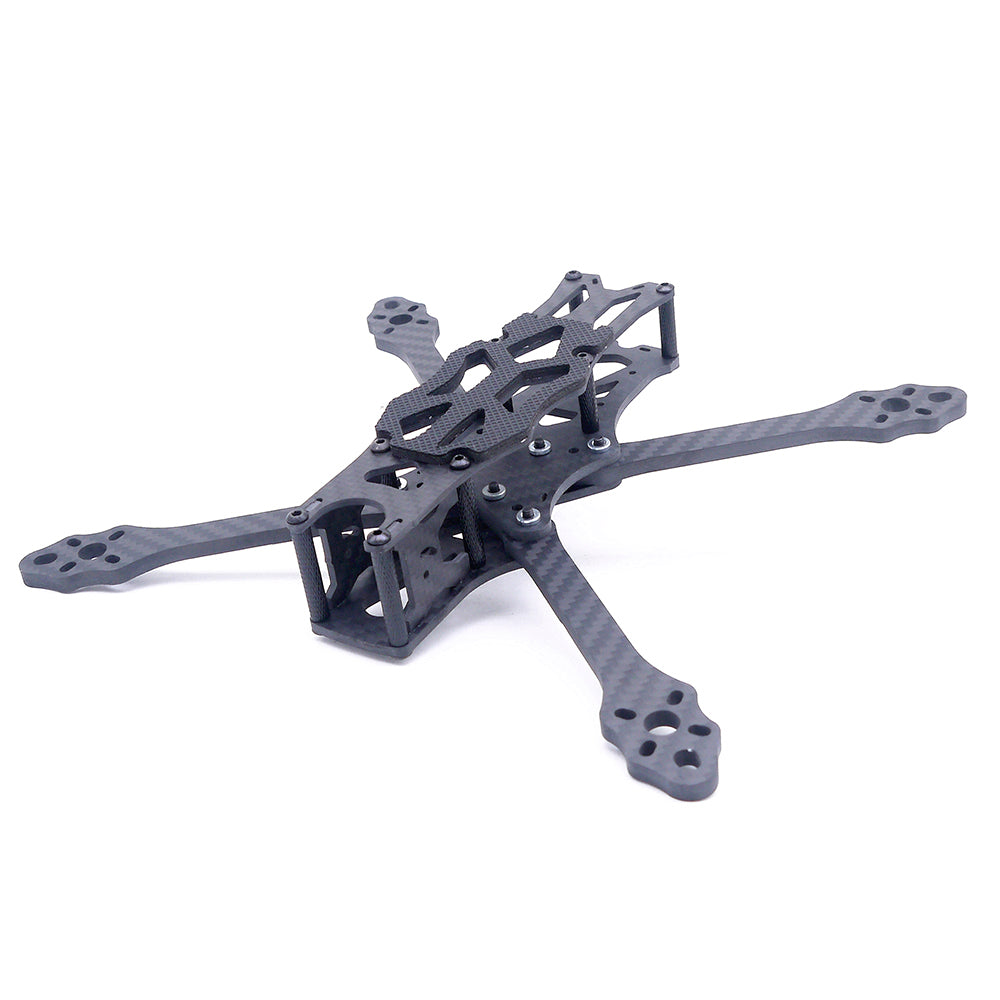

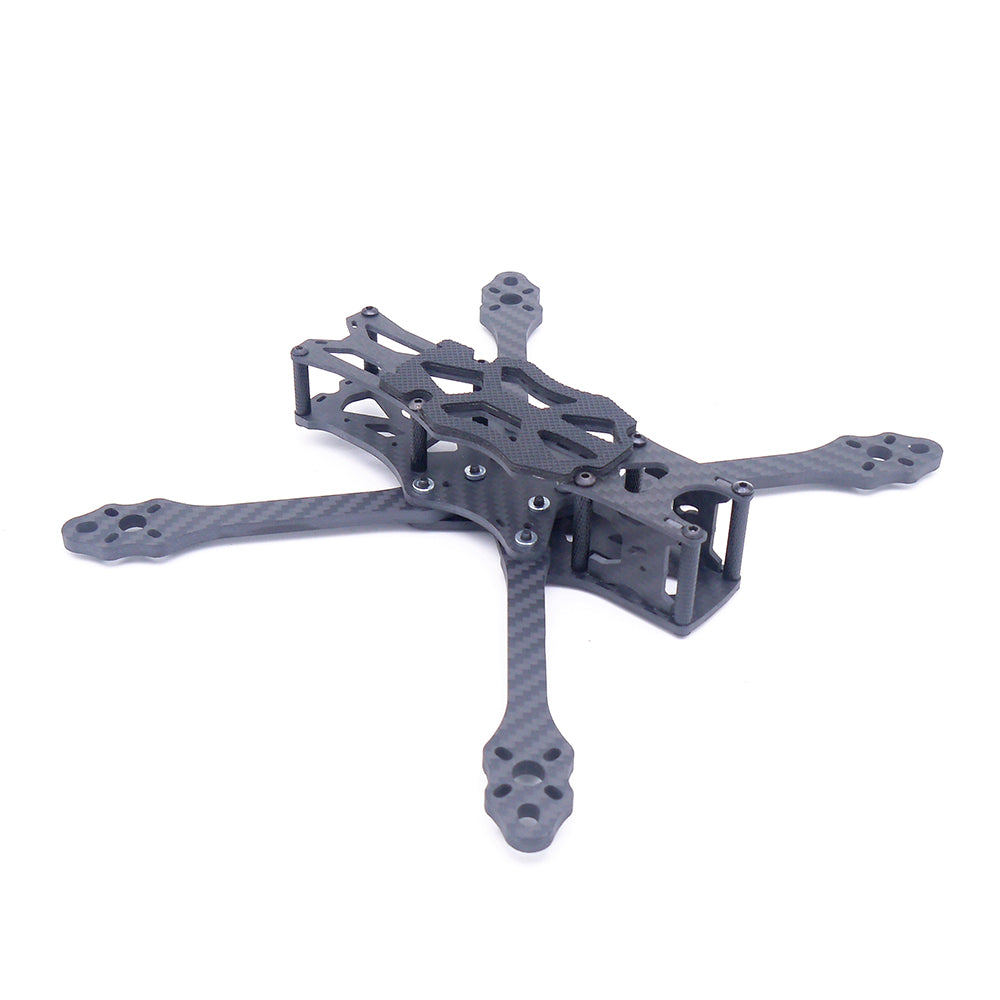

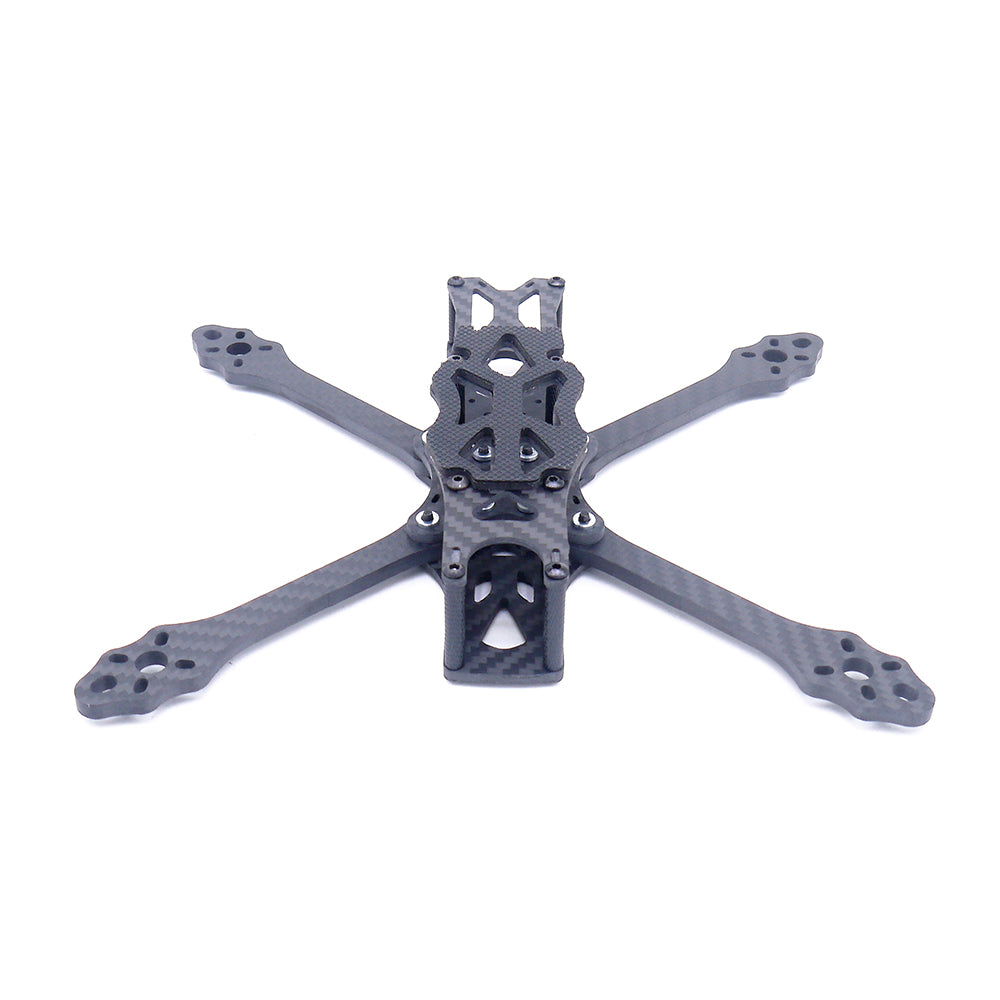

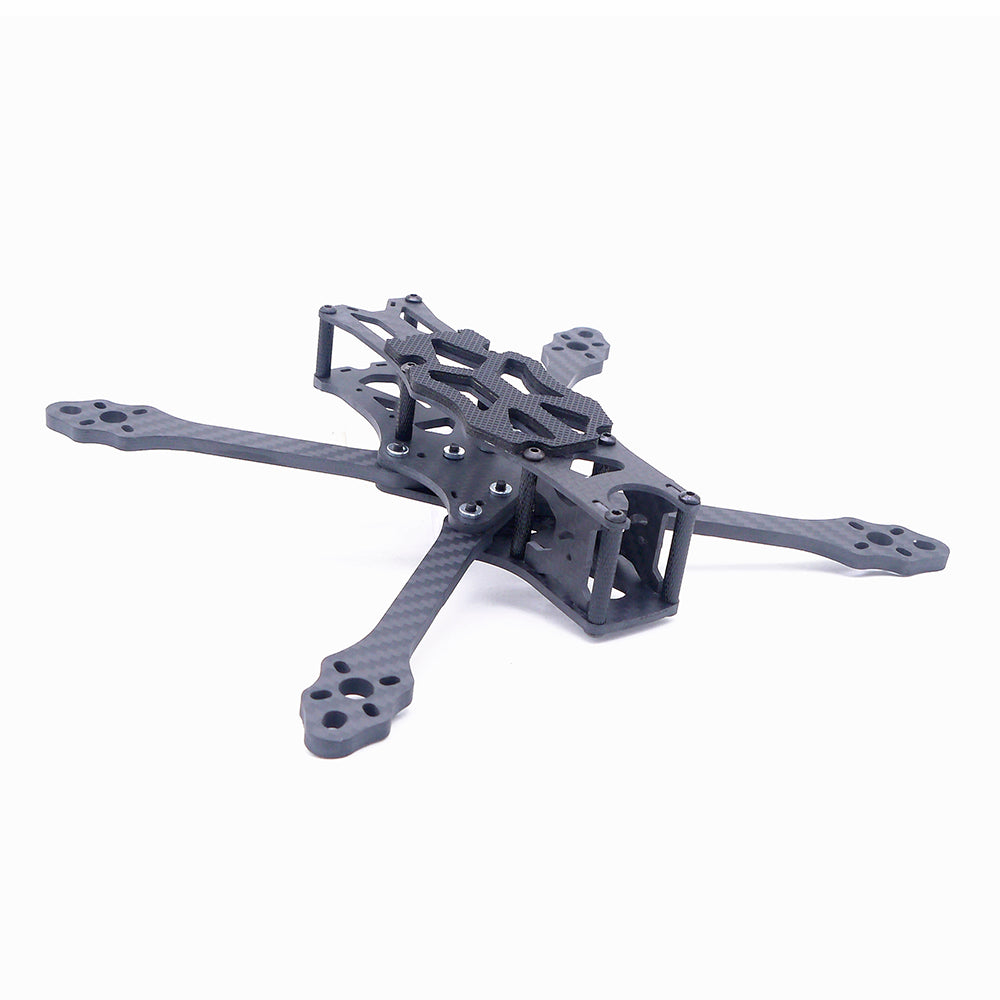

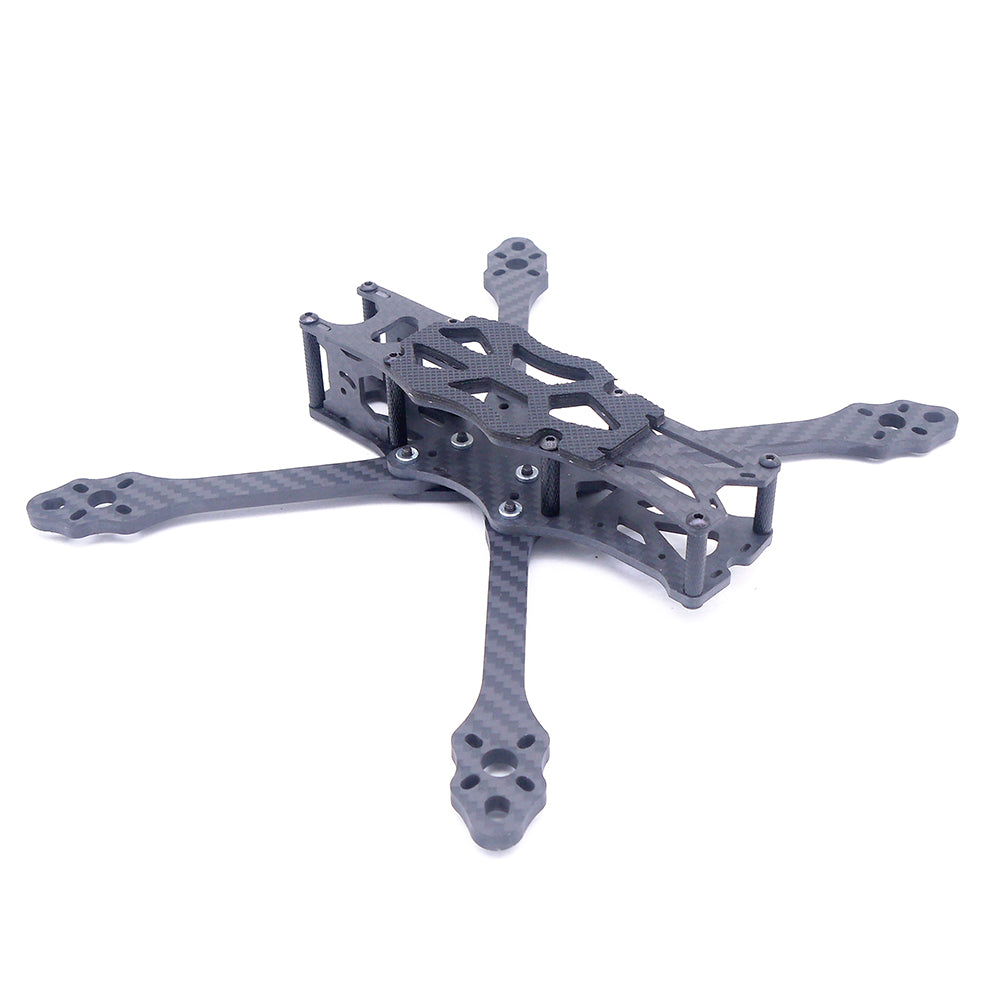

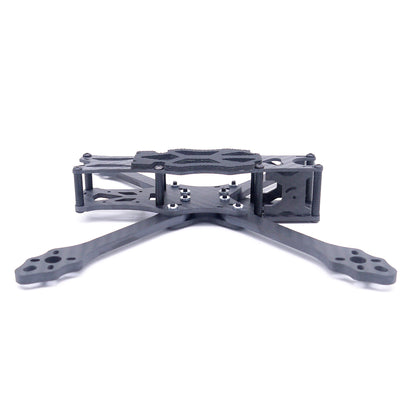

Steele 5” Freestyle Frame - 5mm Arms, Built to Rip
The Steele 5” Freestyle Frame with 5mm Arm Thickness is a tough, lightweight 5-inch X-frame that’s perfect for freestyle pilots who like to push hard. Thick arms, smart plate layout and a clean design make it a reliable choice for 4S-6S builds that need to survive daily sessions without the drama.
Highlights
Proper 5 mm chamfered arms — stiff and crash-resistant
True 5-inch wheelbase for balanced, flicky handling

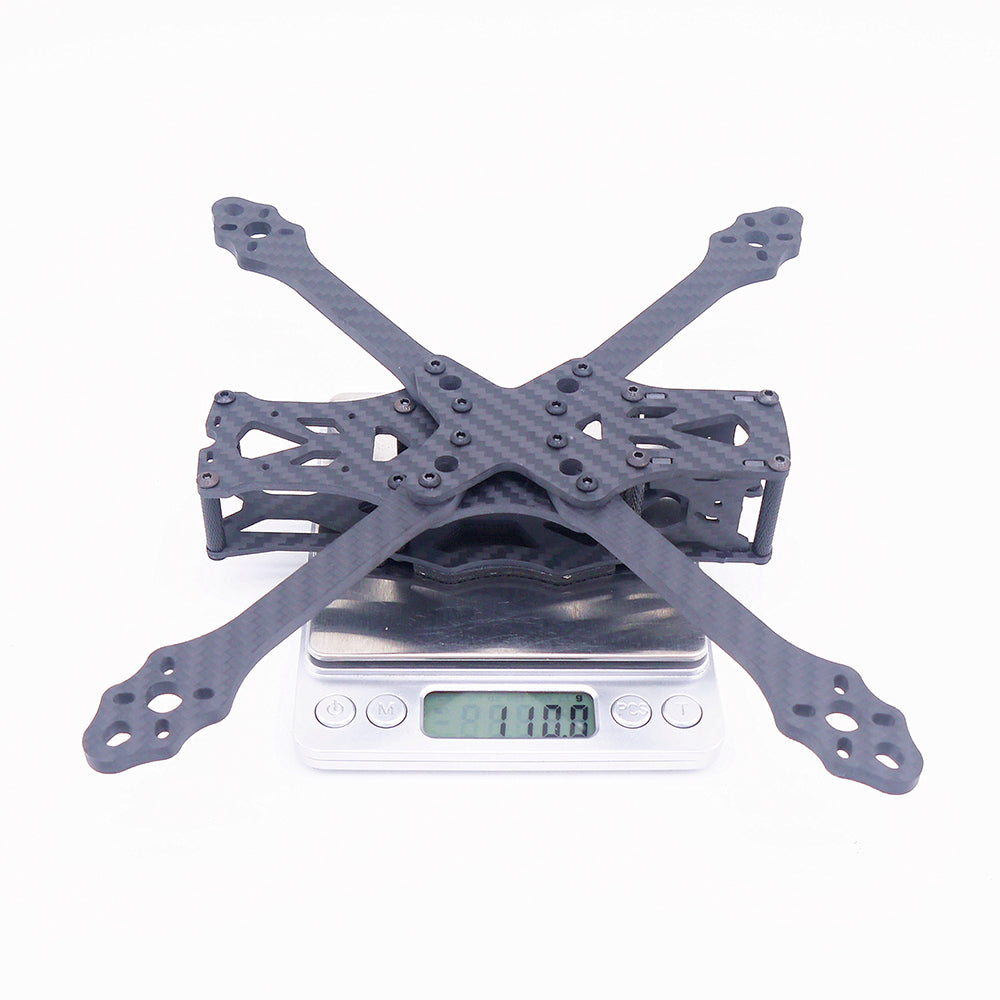

Only 110 g total — keeps your quad light and responsive
20 mm standoff height gives plenty of room for stacks and HD gear
Fits 22 mm wide cameras (Caddx Vista, Walksnail, DJI O3, no worries)
Clean chamfers and pressed brass inserts for easy, frustration-free builds
Design & Ergonomics
Built around a classic true X layout with a 5-inch wheelbase, the Steele 5 feels nimble yet planted. The 5 mm arms soak up big hits, the 3 mm bottom and centre plates keep everything rigid, and the lighter 2 mm top/side plates drop weight exactly where you want it. 20 mm of internal space means you can run a full 30×30 stack, 4-in-1 ESC, capacitor and receiver without fighting for room — ideal for tidy, high-power 5-inch freestyle rigs.
Specifications
Model: Steele 5
Wheelbase: 5 inch (approx 220 mm)
Structure: True X
Arm Thickness: 5 mm
Bottom Plate: 3 mm
Top Plate: 2 mm
Side Plates: 2 mm
Centre Section: 3 mm
Standoff Height: 20 mm
Weight: 110 g
Max Prop: 5″
FC Mounting: 30.5 × 30.5 mm
Motor Mounting: 16 × 19 mm
Camera Width: 22 mm
Material: 3K Carbon Fibre
Recommended gear (not included)
FC/ESC: Any 30×30 stack
Motors: 2207 / 2306 / 2308 on 4-6S
Props: Ethix S5, HQ 5x4.3x3 V2S, any 5-inch tri-blade
Standard 30.5 × 30.5 mm stack pattern, 16 × 19 mm motor holes and a 22 mm camera slot — bolts straight up to pretty much everything on the market today.
Pick up the Steele 5” Freestyle Frame and get a tough, great-flying 5-inch platform without the big price tag. Ready to send!
