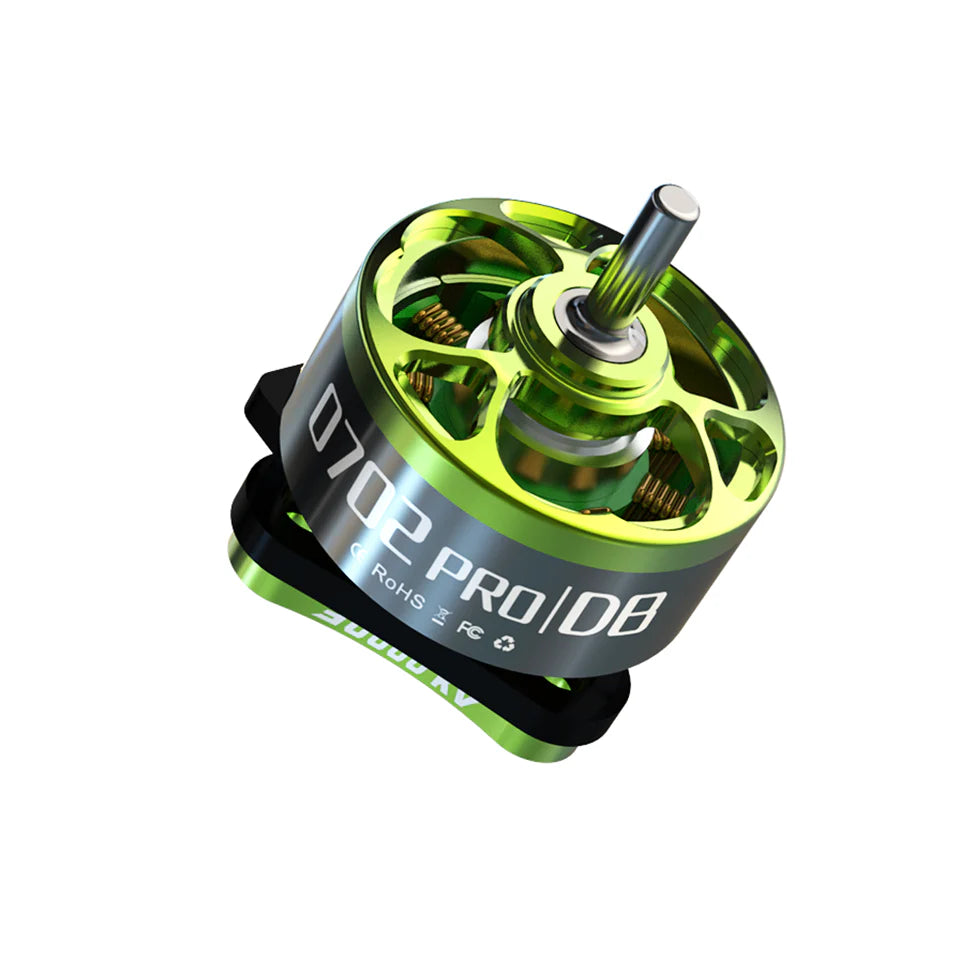

Vulcan Innovation 0702PRO DB 27000KV 1S Brushless Motor (Set of 4)

The Vulcan Innovation 0702PRO DB 27000KV Brushless Motor is the wildest 1S micro motor ripping through Aussie indoor tracks and lounge-room freestyle sessions right now. Clocking a mental 27,000 KV, dual ball bearings and a featherweight 1.5 g build, this is the motor experienced pilots bolt into 65–85 mm whoops and toothpicks when they want explosive snap, instant spool-up and zero excuses. If your tiny whoop feels sleepy, these will wake it up in a big way.

Highlights

• 27,000 KV Insanity: Built purely for fresh 1S LiHv cells—over 113,000 RPM of pure violence
• Dual Ball Bearings: Silky smooth and tough enough for daily carpet bashing
• Ultra-Light: Just 1.5 g with wires—keeps your AUW stupid low
• 37.5 g Thrust Per Corner: Enough punch for power loops and gap-smashing on 65 mm ducts
• Proven on Meteor65, Mobula6, Air65: Direct drop-in for the frames everyone flies

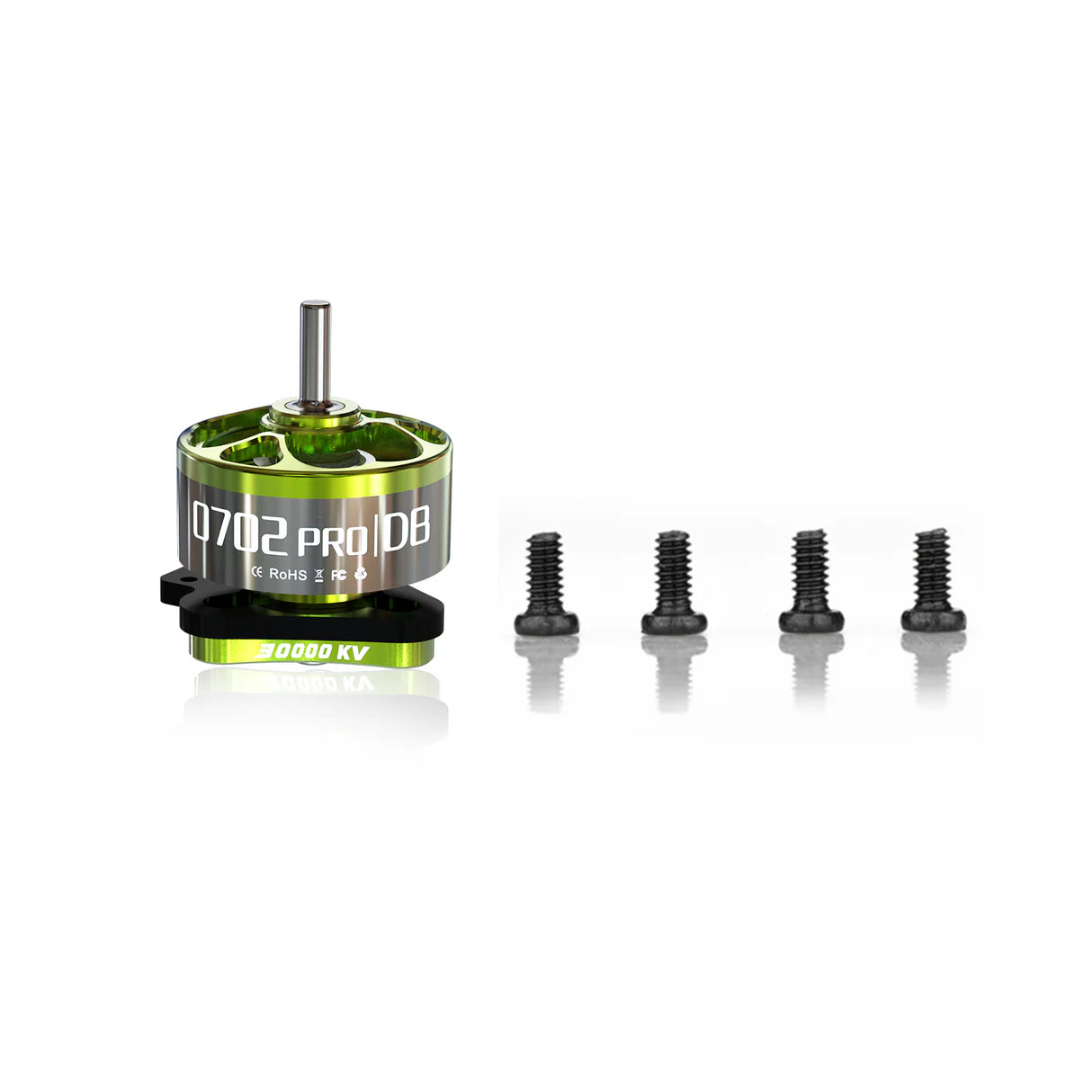

• Set of 4: Includes M1.4 mounting screws—ready to solder and send

Design & Ergonomics

Vulcan Innovation nailed the 0702PRO DB for real micro flying. At only Ø9.1 × 11.4 mm it slots into the tightest whoop ducts, the 1 mm hollow D-shaft locks props rock-solid, and 35 mm 30 AWG silicone leads make soldering to any 1S AIO a 2-minute job. Dual ball bearings plus perfectly balanced rotor mean zero vibration—even when you’re screaming around the house at full noise.

Specifications

• Model: Vulcan Innovation 0702PRO DB 27000KV
• KV Rating: 27,000 KV
• Configuration: 9N12P
• Stator Size: 0702 (7 × 2 mm)
• Motor Dimensions: Ø9.1 × 11.4 mm
• Shaft: 1 mm hollow D-shaft
• Weight: ≈1.5 g (including wires)
• Wire Spec: 30 AWG silicone, 35 mm
• Bearings: Dual ball bearings
• Magnets: 52H curved neodymium
• Internal Resistance: 180 mΩ
• Max Continuous Current: ~5.1 A
• Max Thrust: ~37.5 g (Gemfan 31 mm props)
• Recommended Props: 31–40 mm whoop props (Gemfan 1210, 1208, etc.)

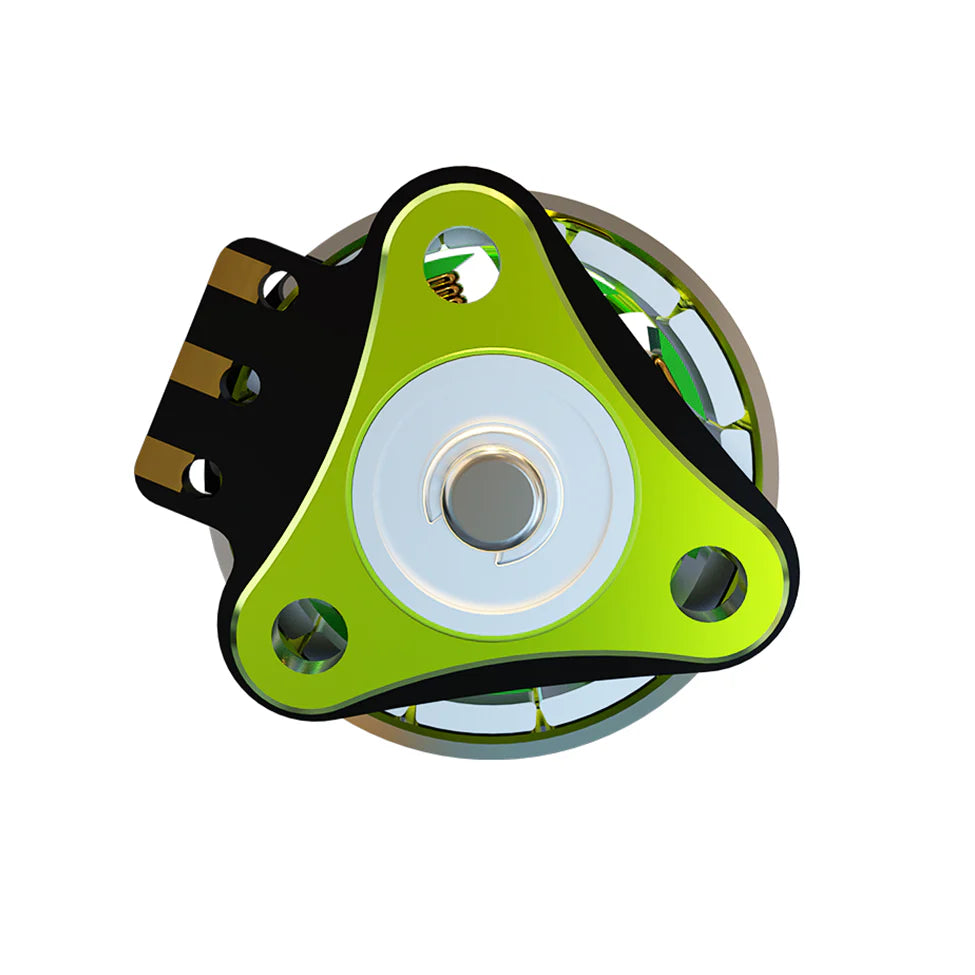

• Mounting: 6.6 mm diagonal, M1.4 holes
• Voltage: 1S LiPo / LiHv only
